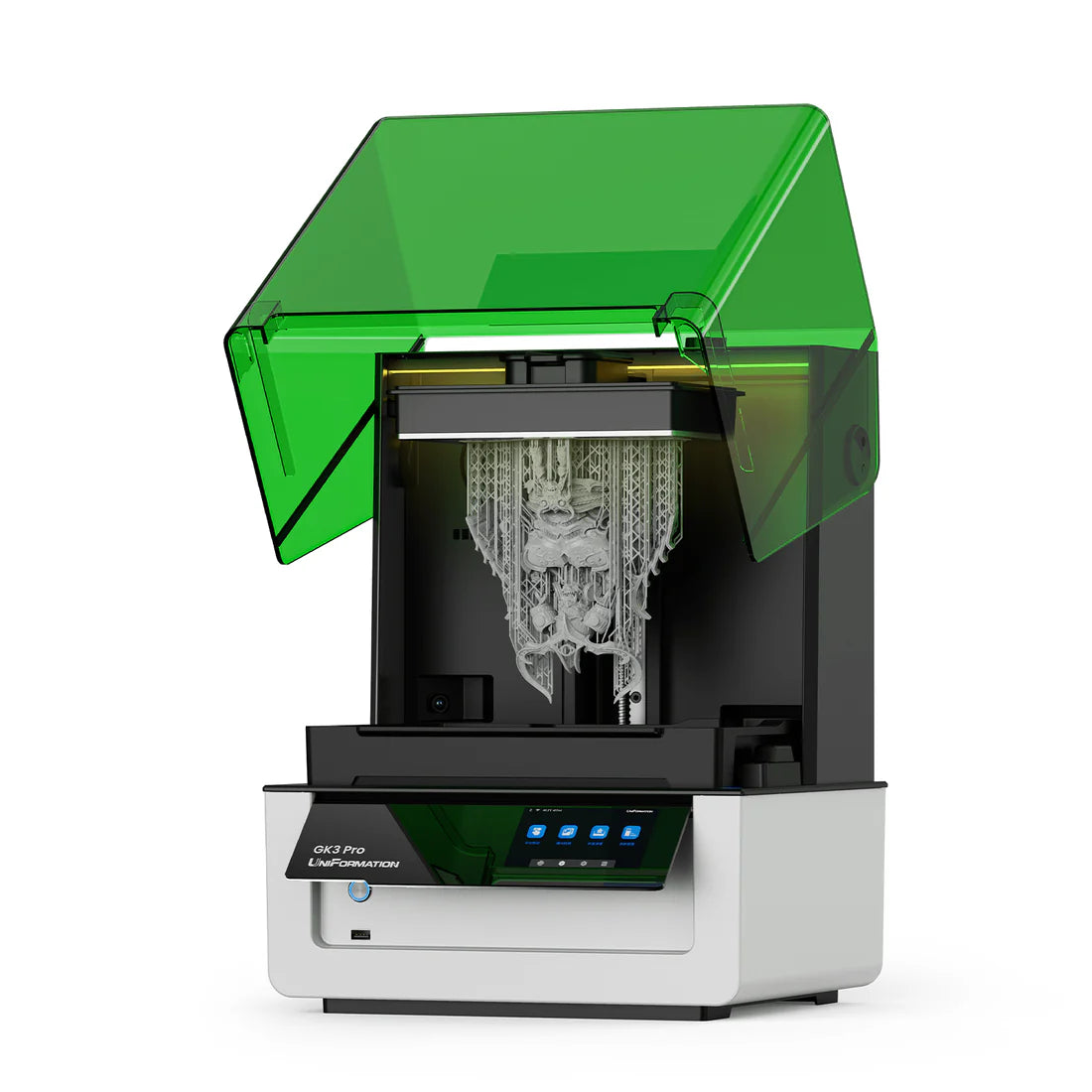

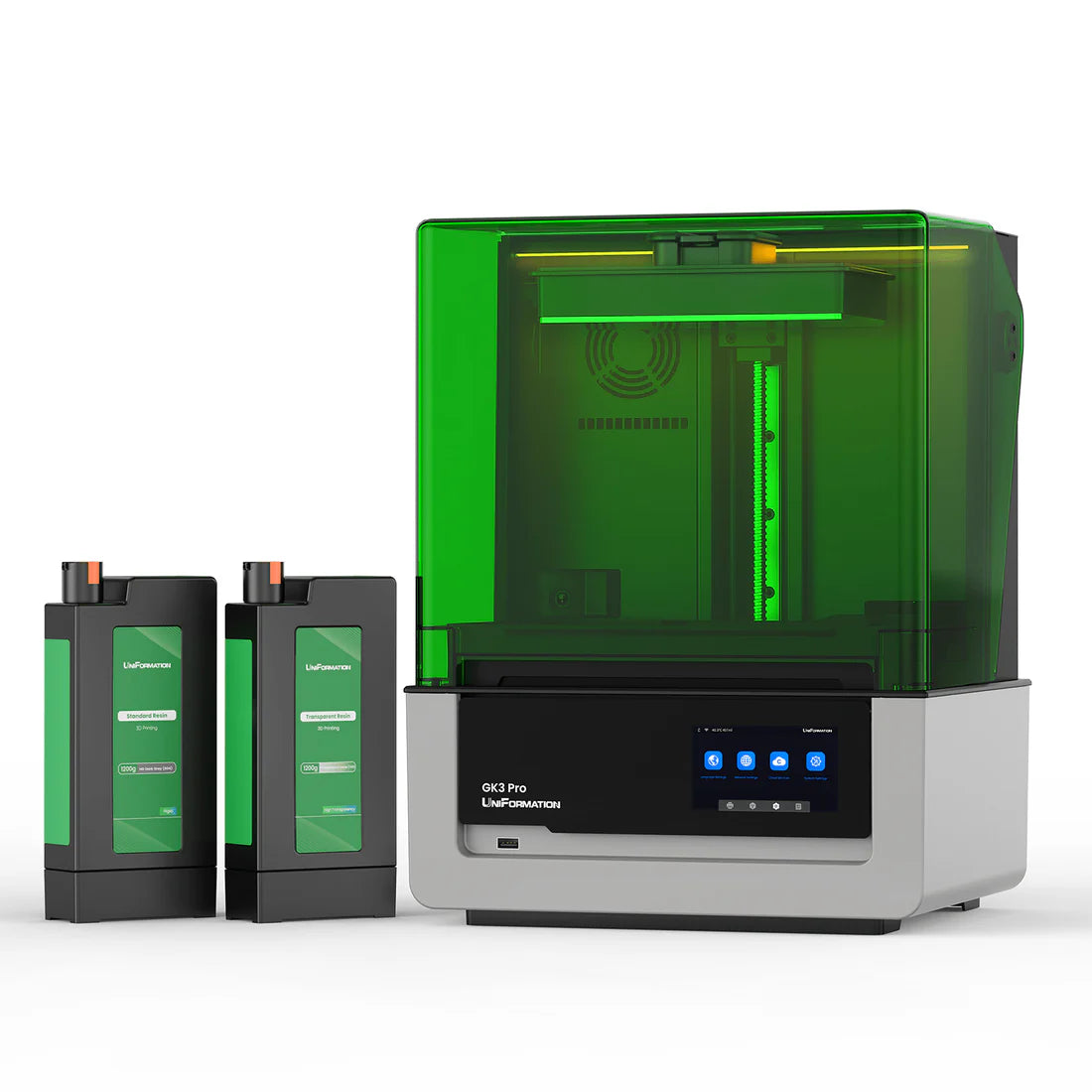

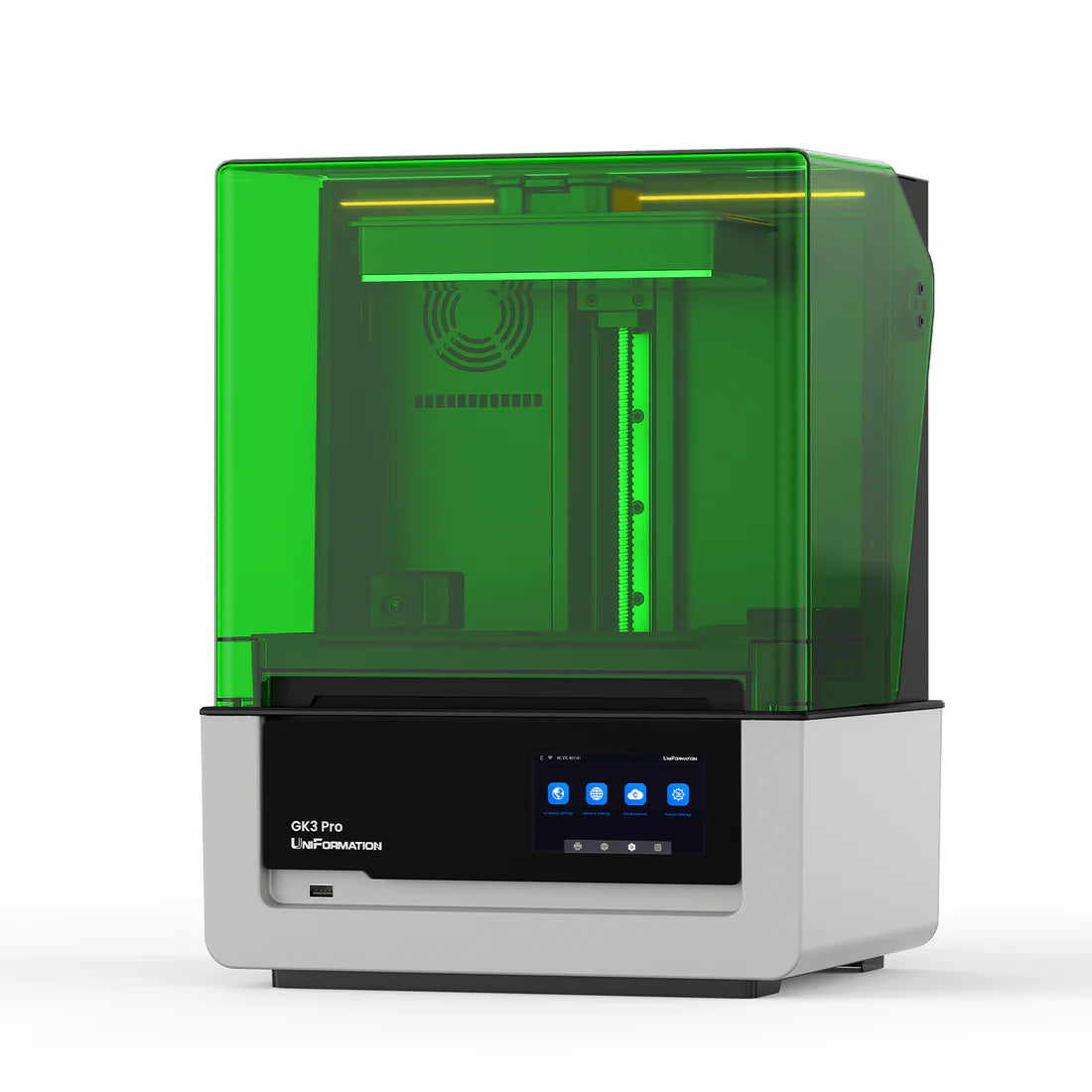

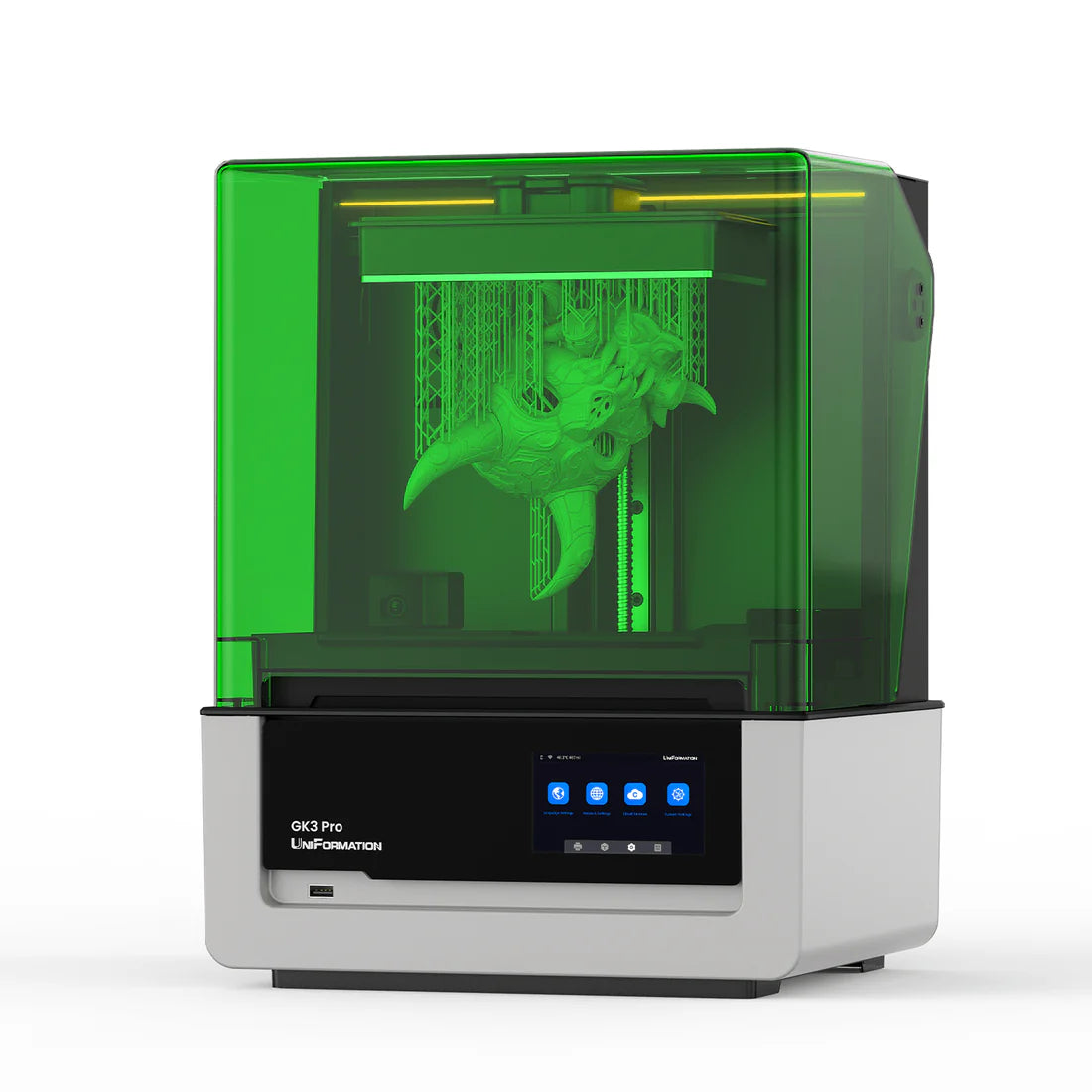

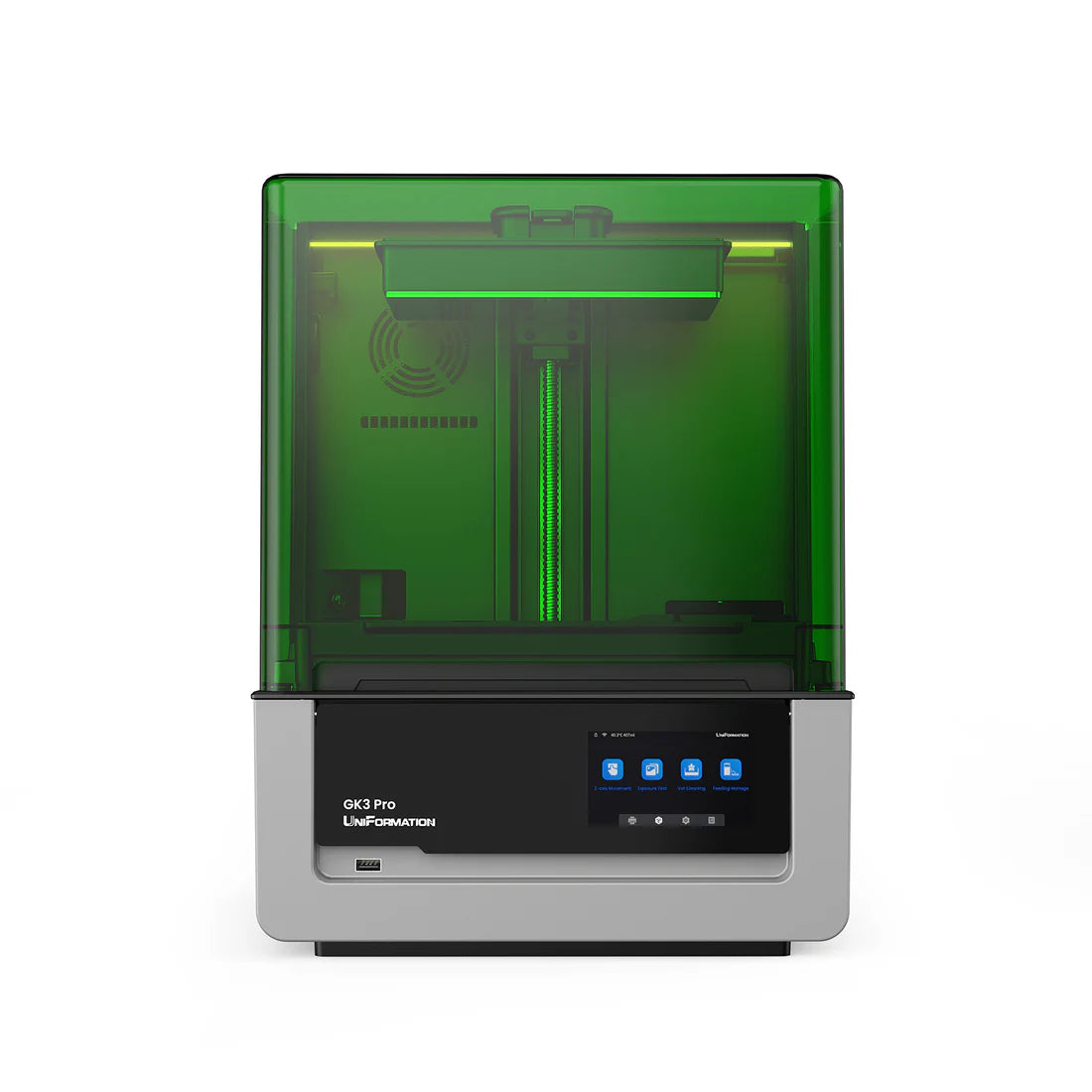

The Uniformation GK3 Pro is a professional MSLA resin 3D printer specifically designed for maximum detail, process stability, and reproducible results. With its 16K mono-LCD and an extremely fine XY resolution of 14 µm, the GK3 Pro is aimed at users who demand the highest precision – for example, in the miniature, figurine, dental, jewelry, or prototyping sectors.

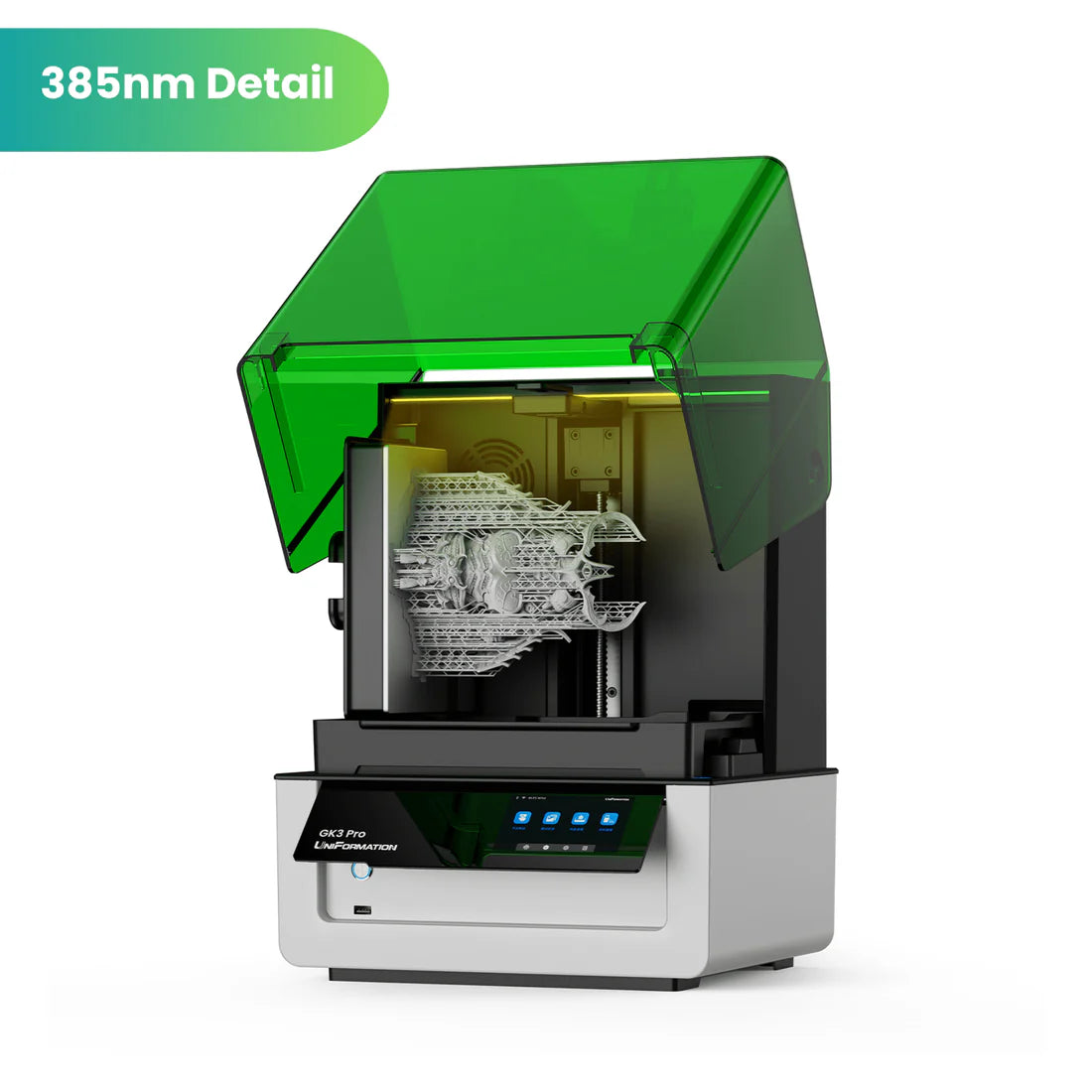

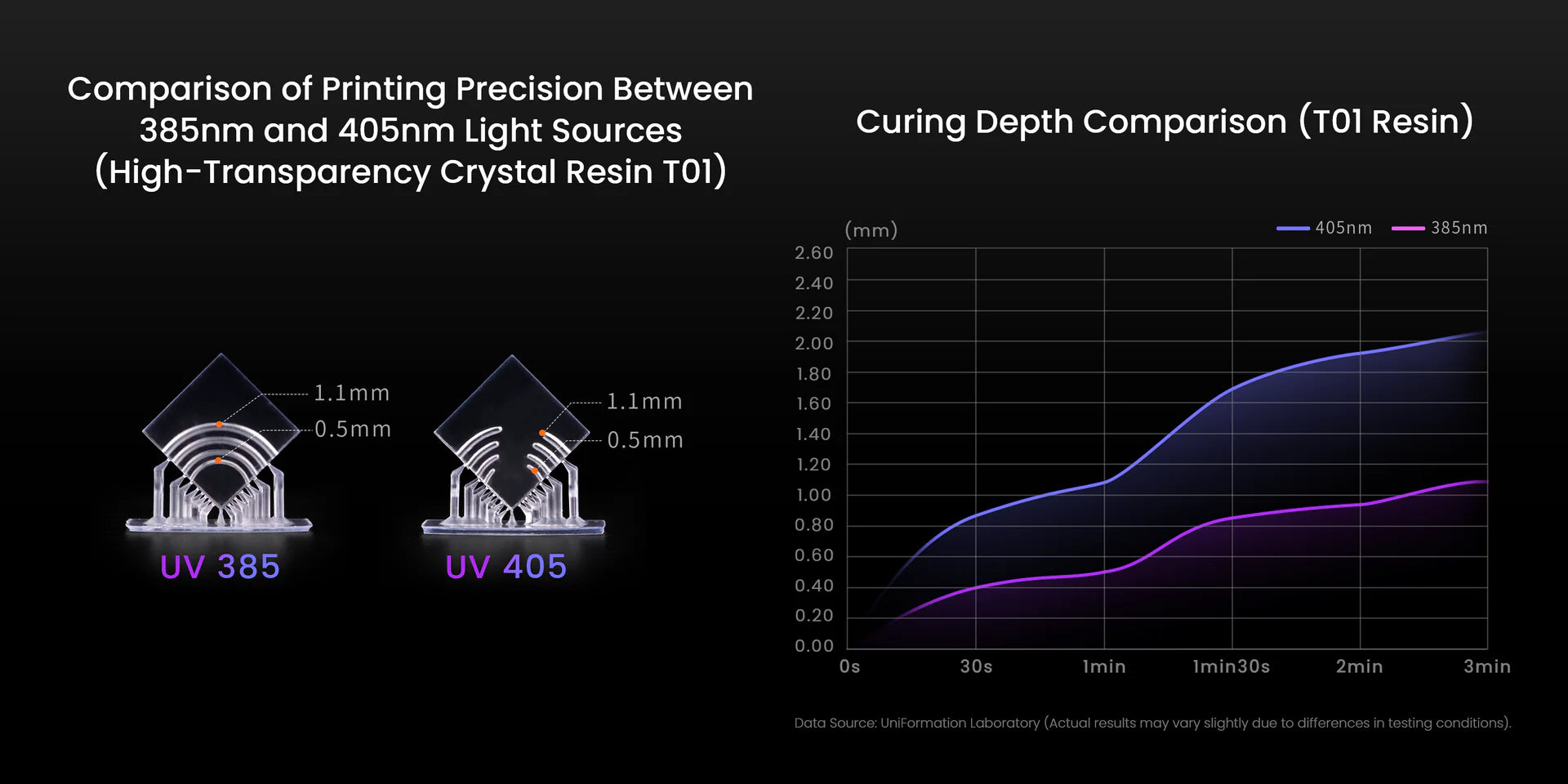

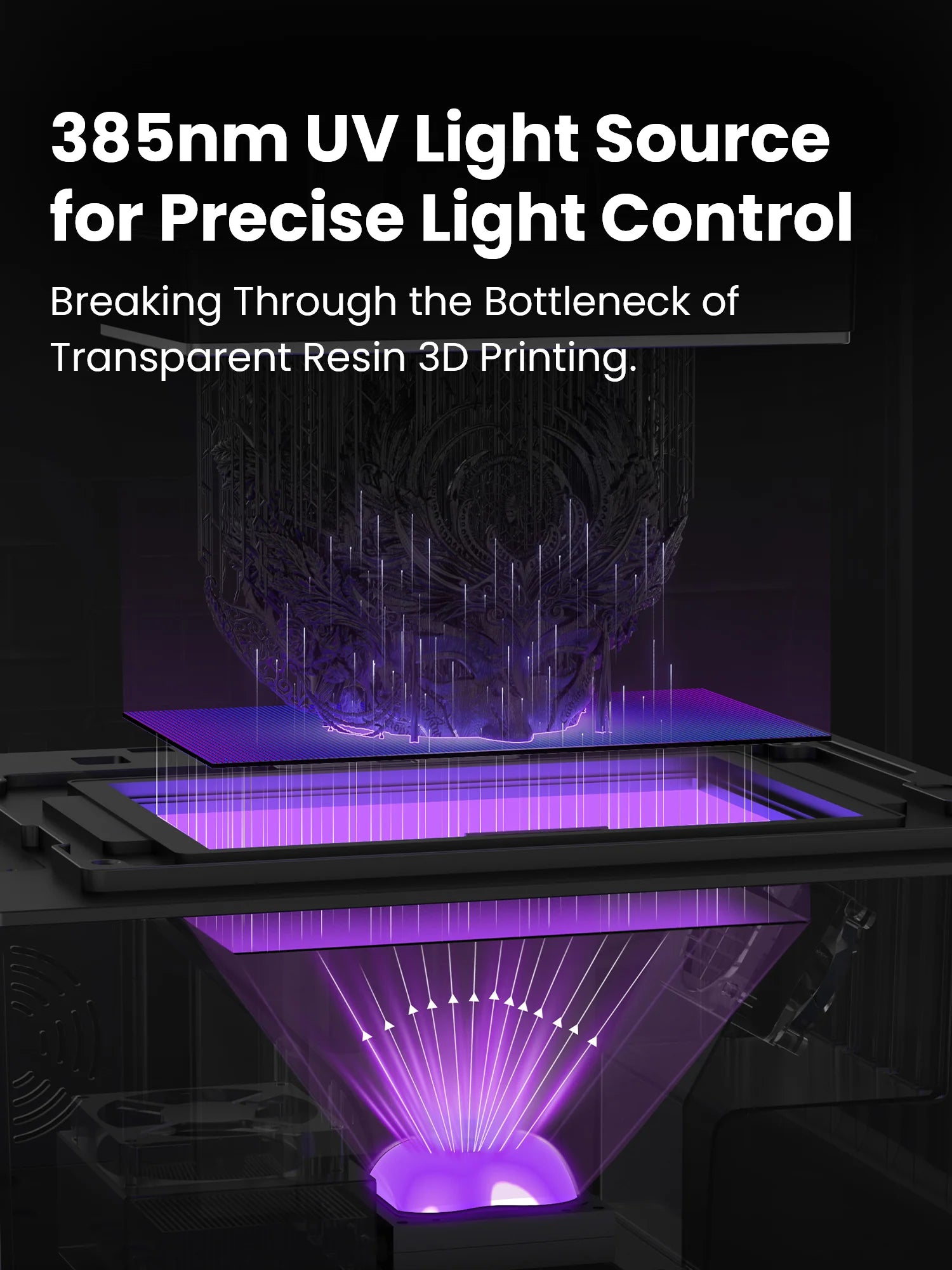

A key distinguishing feature of the GK3 Pro is its special 385 nm UV light source. This shorter wavelength reduces light scattering in the resin, enabling exceptionally sharp edges, fine details, and more controlled polymerization. Combined with the integrated, actively heated resin system, even temperature-sensitive resins can be processed under consistent conditions – a clear advantage for longer print jobs and serial production.
Why the GK3 Pro
While many resin printers primarily focus on high resolution, the GK3 Pro combines several professional features into a well-designed overall system:
16K resolution with 14 µm XY pixel size → extremely fine details and clean surfaces
385 nm UV light source → less light scattering, more precise exposure, better edge sharpness, ideal for clear resin
Actively heated resin tank → constant viscosity, higher process reliability

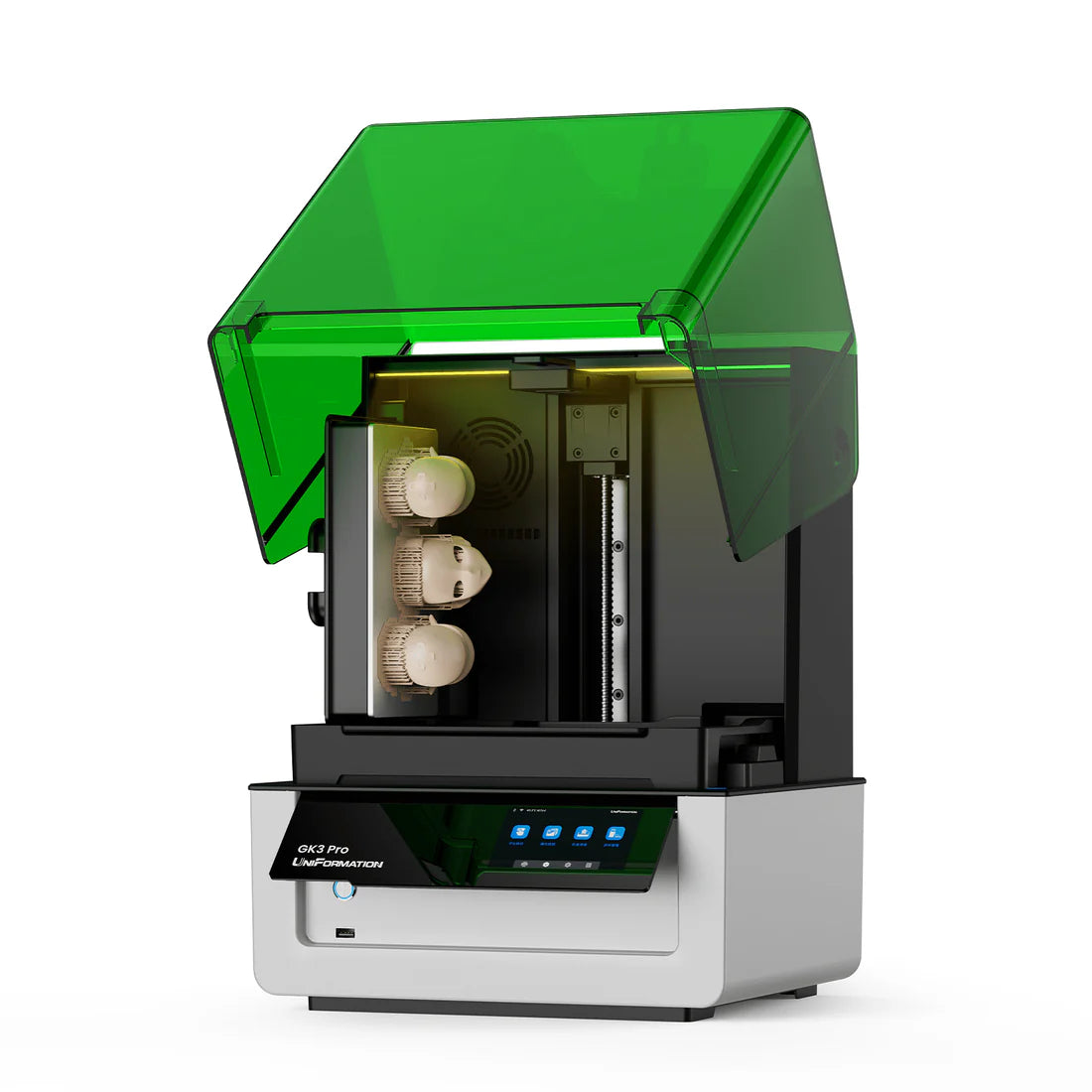

Tilting mechanism of the resin tank (tilting vat) → reduced removal forces, higher success rate on large areas

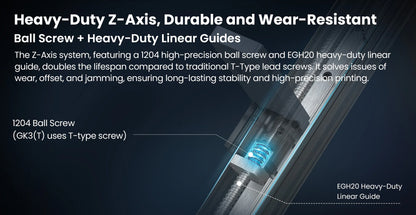

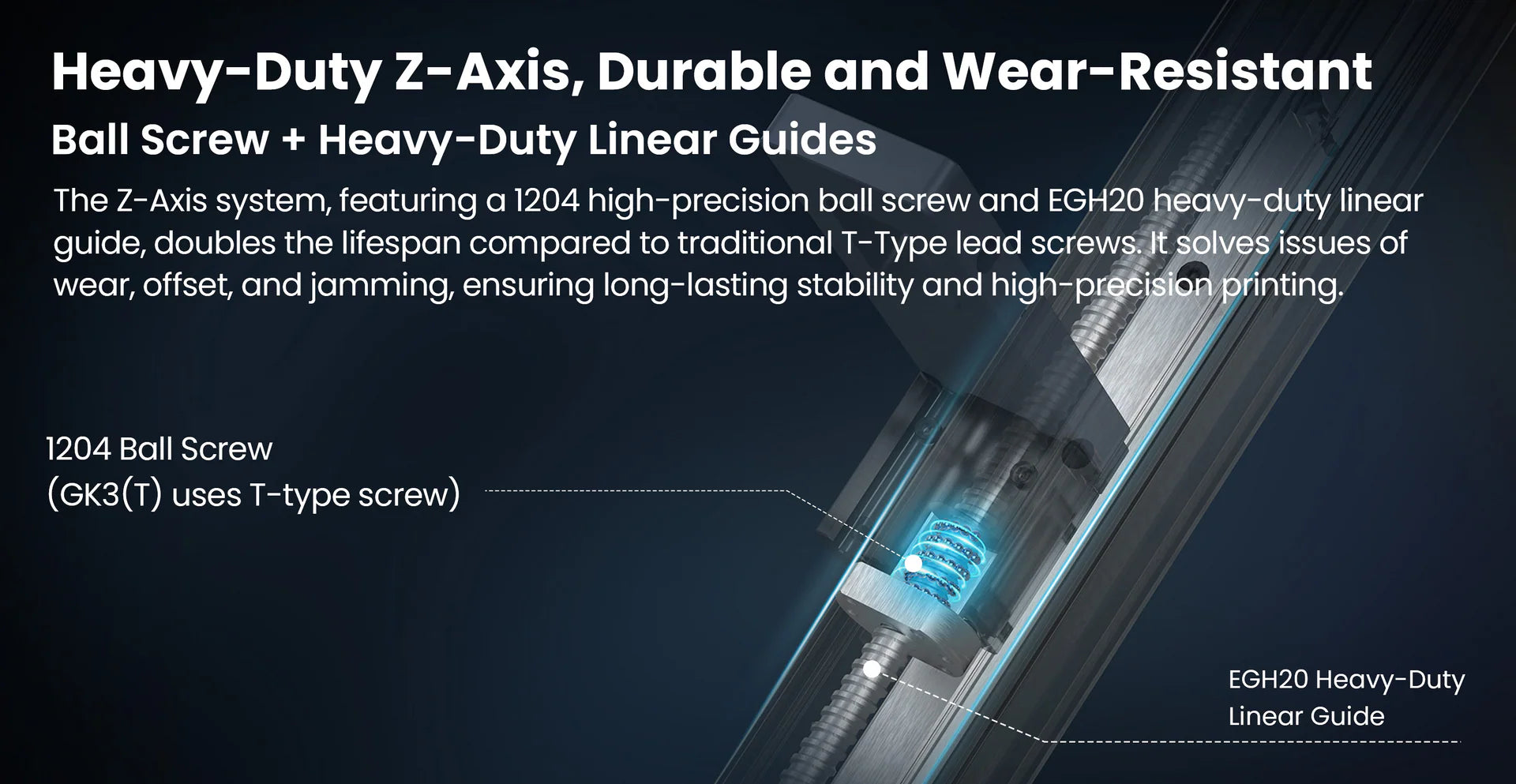

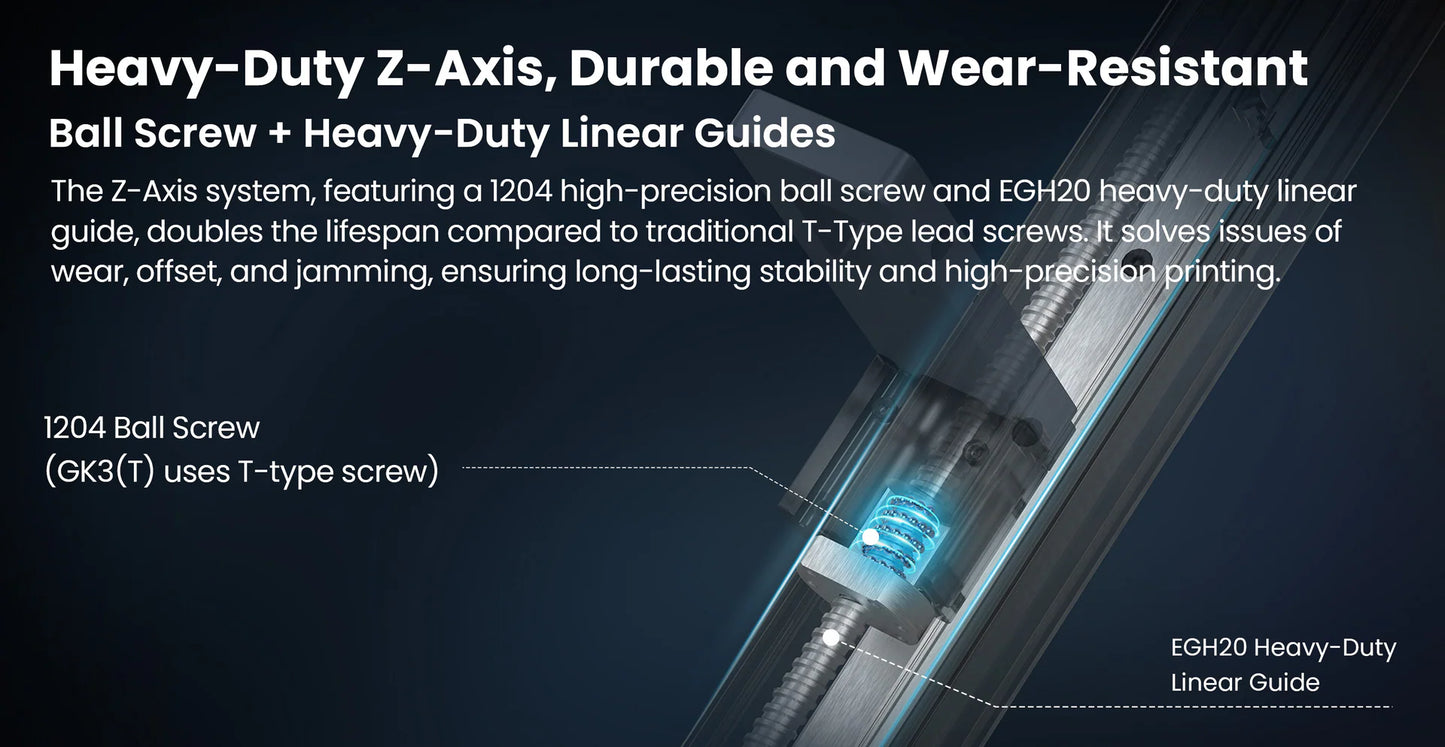

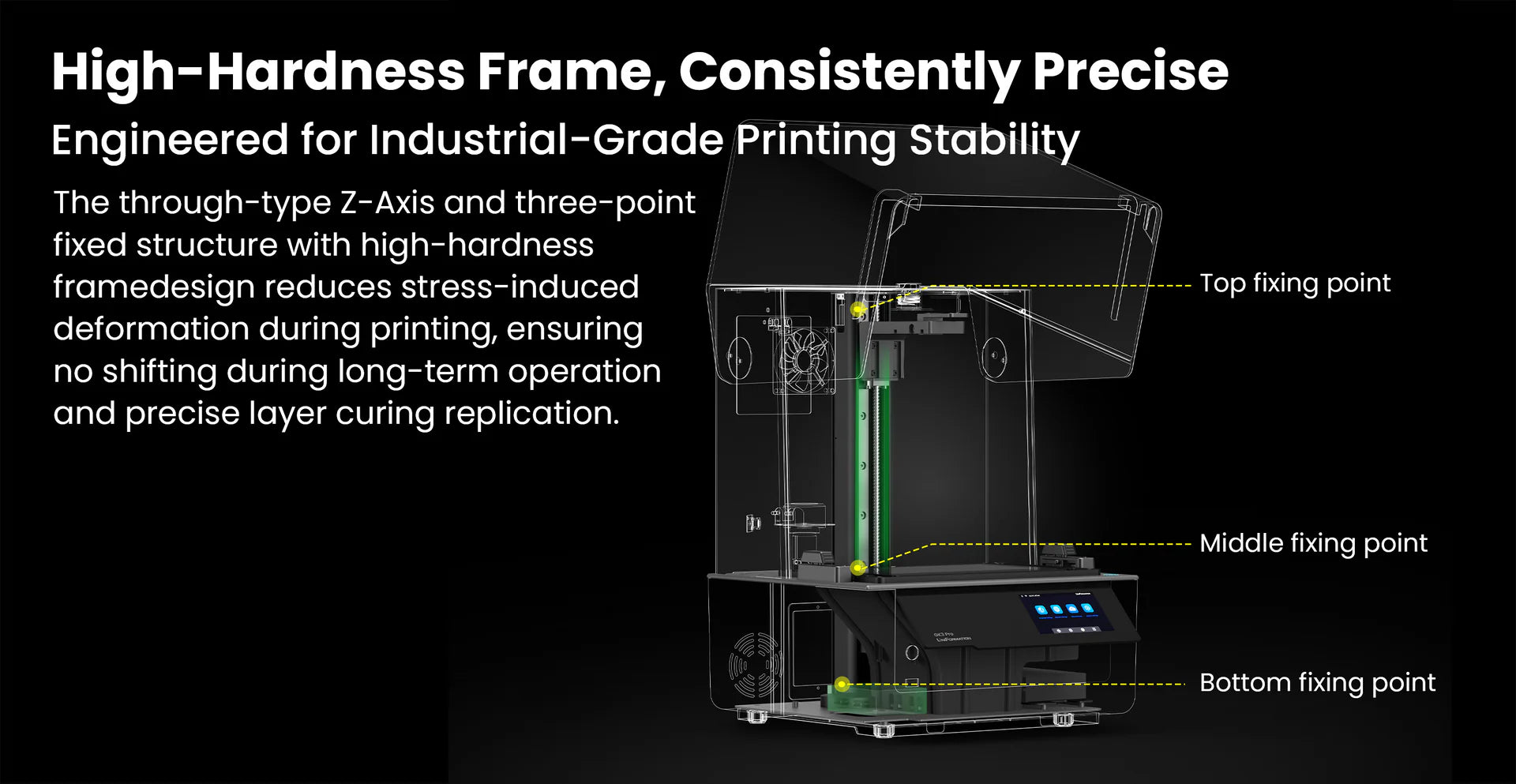

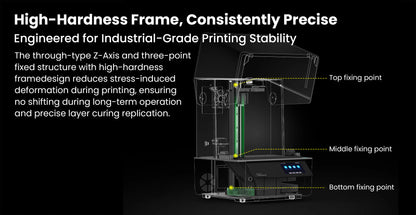

Double linear guide on the Z-axis → high stability and uniform layers
Solid metal frame → designed for continuous operation and reproducible results
This clearly targets ambitious makers, studios and professional users for whom process control and reliability are more important than mere ease of use for beginners.
Typical areas of application
Highly detailed miniatures and figures
Dental and medical applications
Jewelry and design prototypes

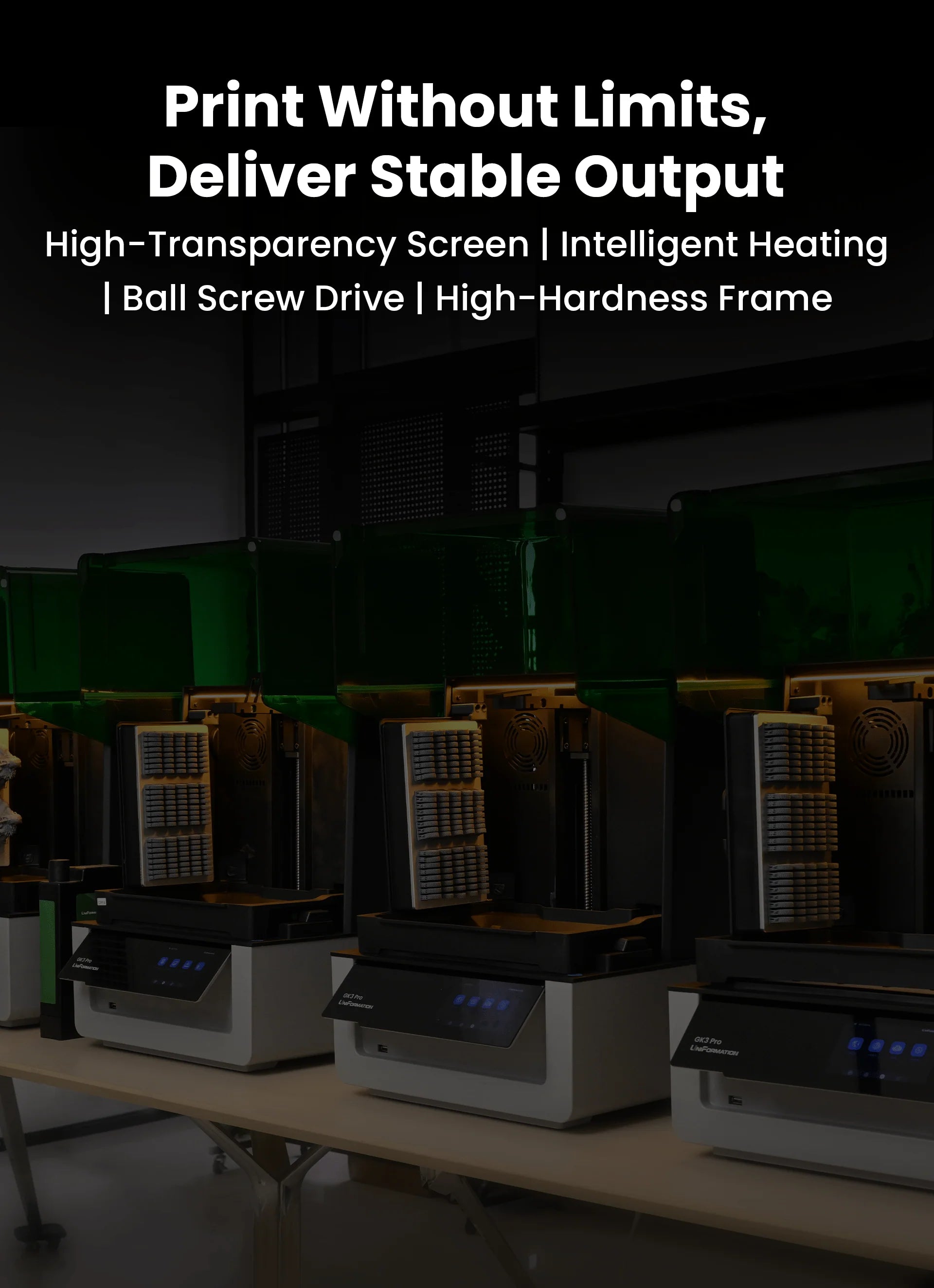

Series production of small to medium-sized resin components
Professional studios and workshops
Specifications
category
specification
Printing technology
MSLA (Resin, LCD masking)

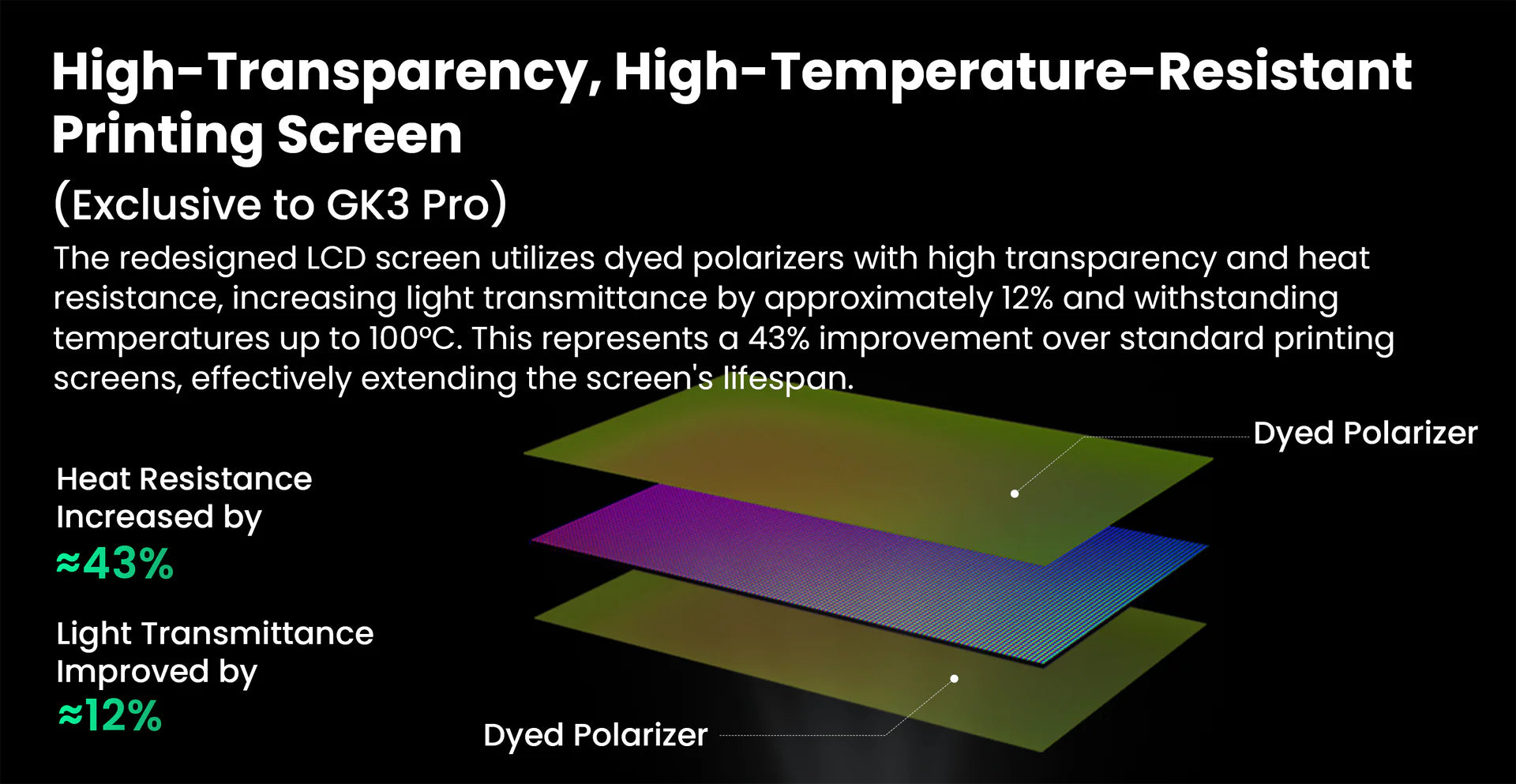

LCD display

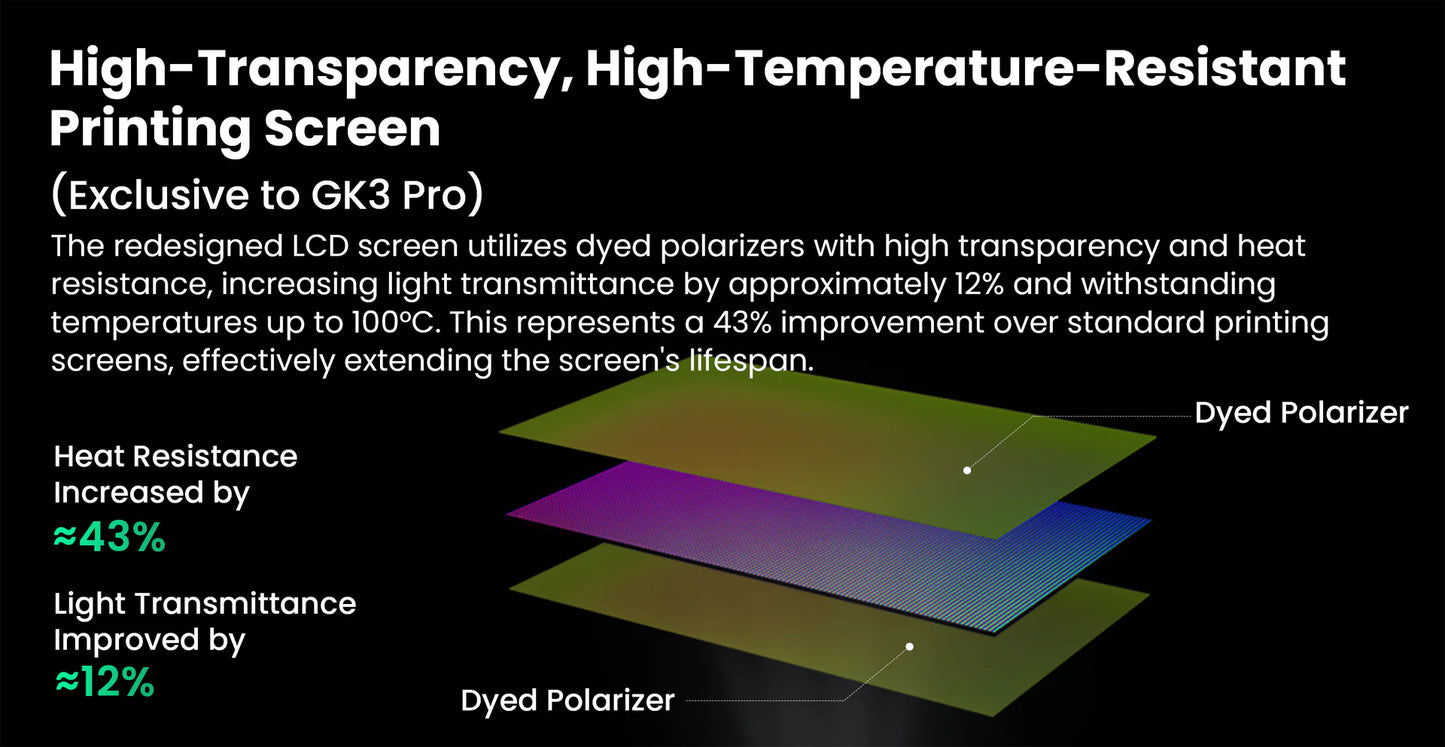

10.3" Mono-LCD
resolution
16K (15120 × 6230 px)
X/Y resolution
14/19 µm
Pressure volume
approx. 211 × 118 × 240 mm
Z-axis
Double precision linear guide
Light source
385 nm UV light source*
Layer height
0.01 – 0.30 mm
speed
depending on the resin (typically 1–3 s per layer)
materials
Standard, ABS-Like, Tough, Dental, Model and Specialty Resins*
operation

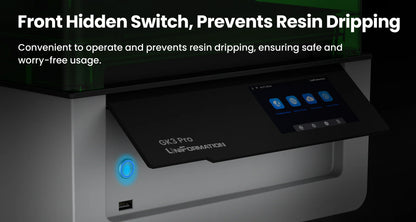

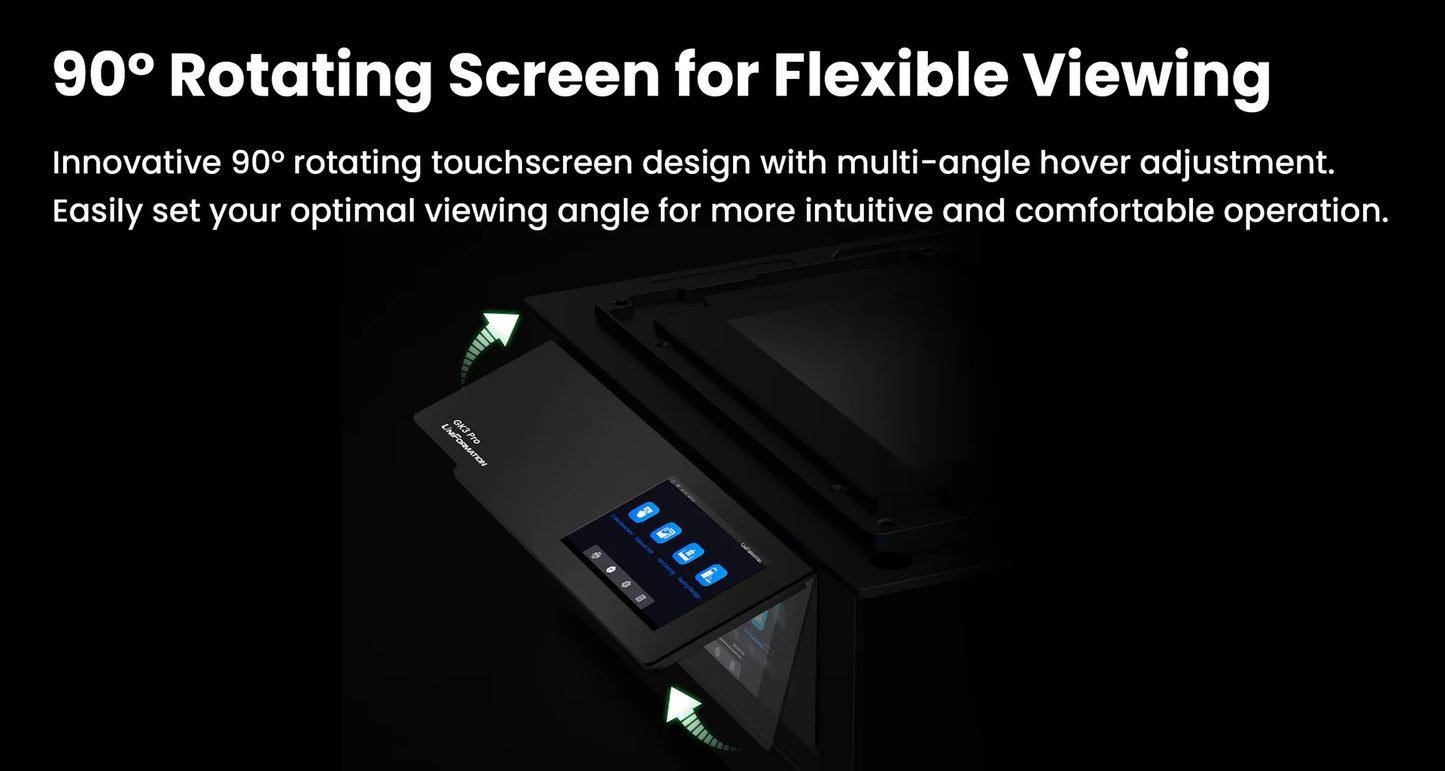

Color touchscreen
Connectivity
USB, LAN, WLAN
Housing
Metal frame, UV-resistant hood
Dimensions
approx. 392 × 332 × 520 mm
Weight
approx. 24 kg
*Note: Many 405 nm resins can still be used, but may require adjusted exposure times. For optimal results, it is recommended to use resins suitable for 385 nm.
Note regarding availability
Shipping only to Germany and France.
When ordering via Makersupply, the device is requested directly from the European warehouse.
The current stock level cannot be guaranteed in real time. Therefore, your order may be considered a pre-order. In this case, delivery will be made as soon as possible; you will receive a notification with a confirmed shipping date and tracking link as soon as your order has been dispatched.
If you have any questions about availability or delivery time, please feel free to contact us at any time.
