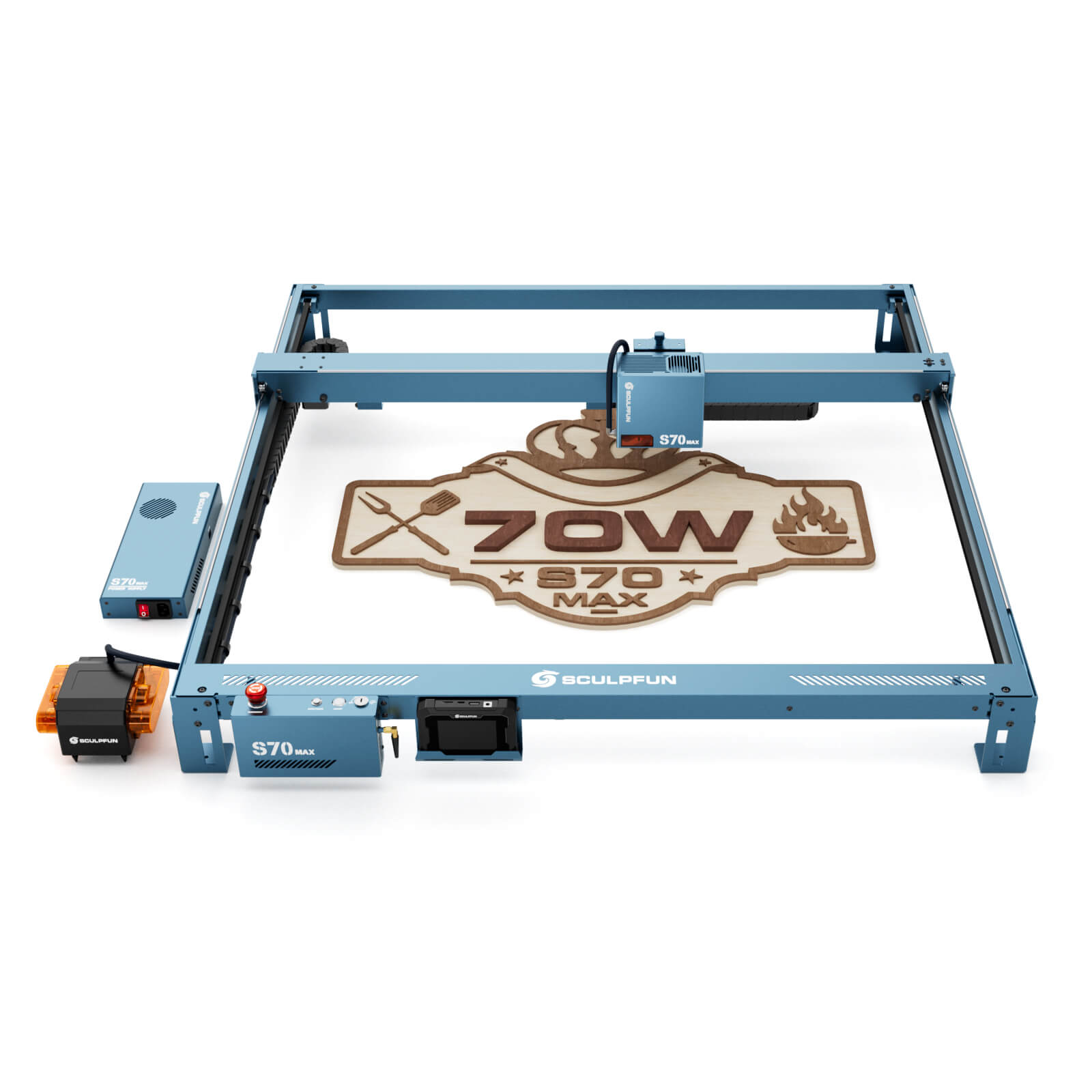

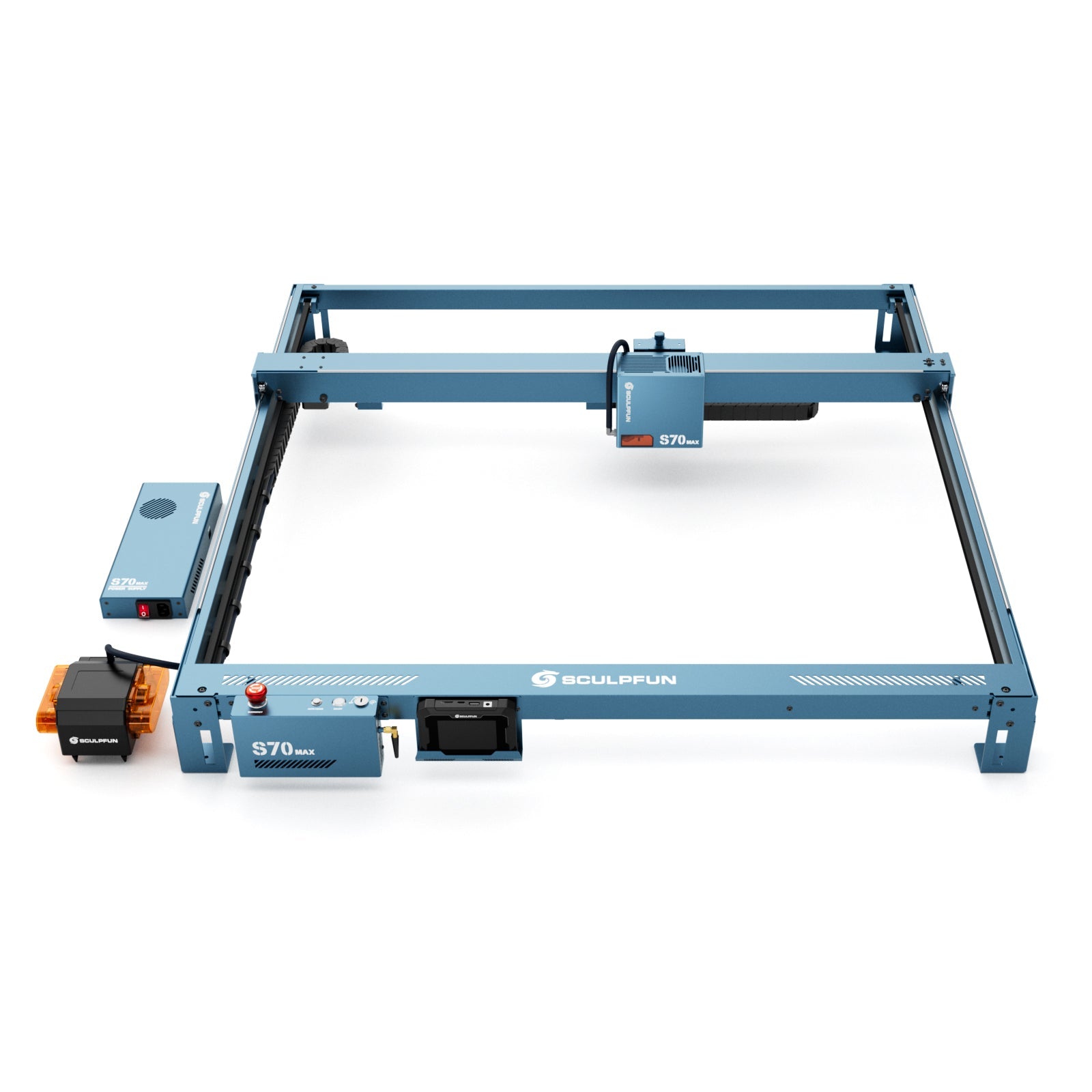

Sculpfun S70 MAX - 70W laser engraver

Key features:

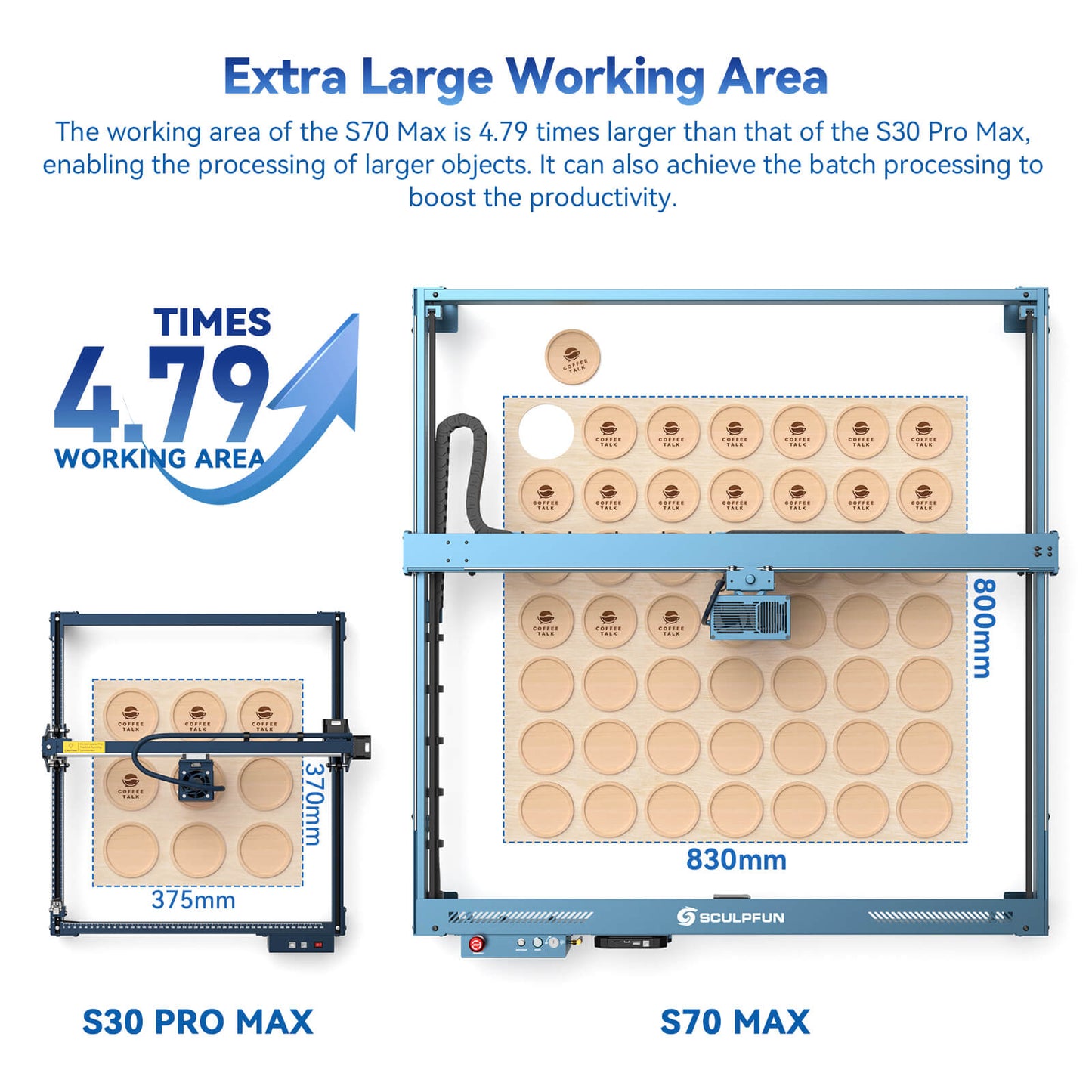

1. Extra-large working area, 830 × 800 mm
With a footprint of 980 × 1000 mm, the Sculpfun S70 Max offers ample space for particularly large materials. The actual working area of ​​830 × 800 mm allows for the processing of large-format objects and meets a wide range of requirements. A maximum engraving speed of up to 36,000 mm/min makes it ideal for large-area cutting and serial engraving – perfect for workshops, ambitious users, and professionals.

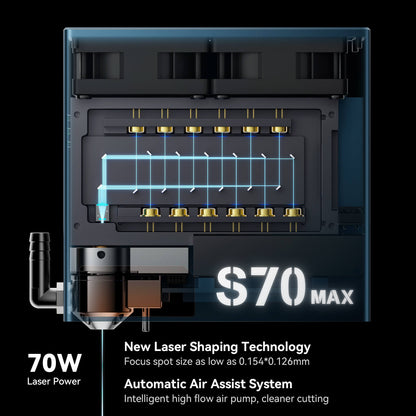

2. Ultra-powerful 70W laser

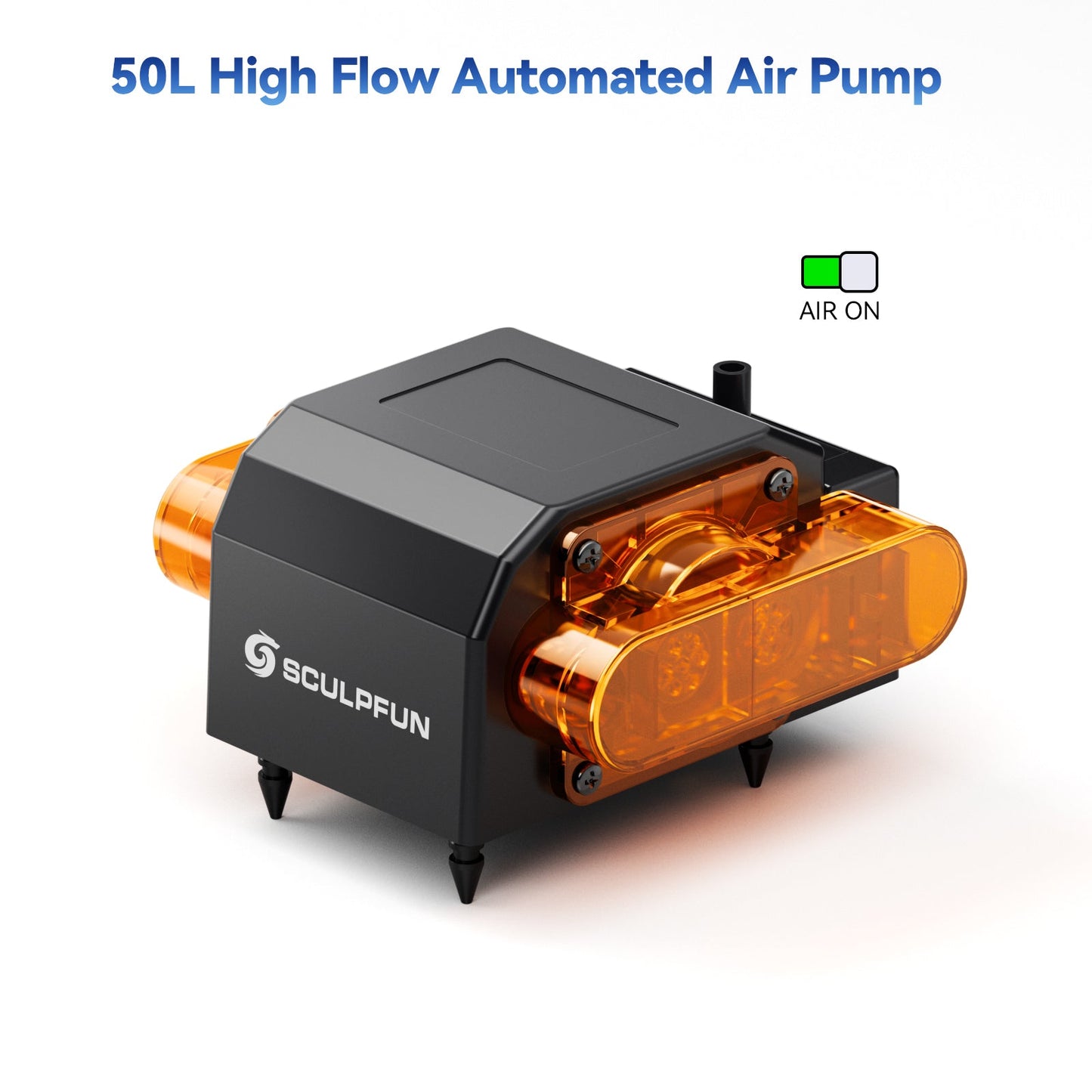

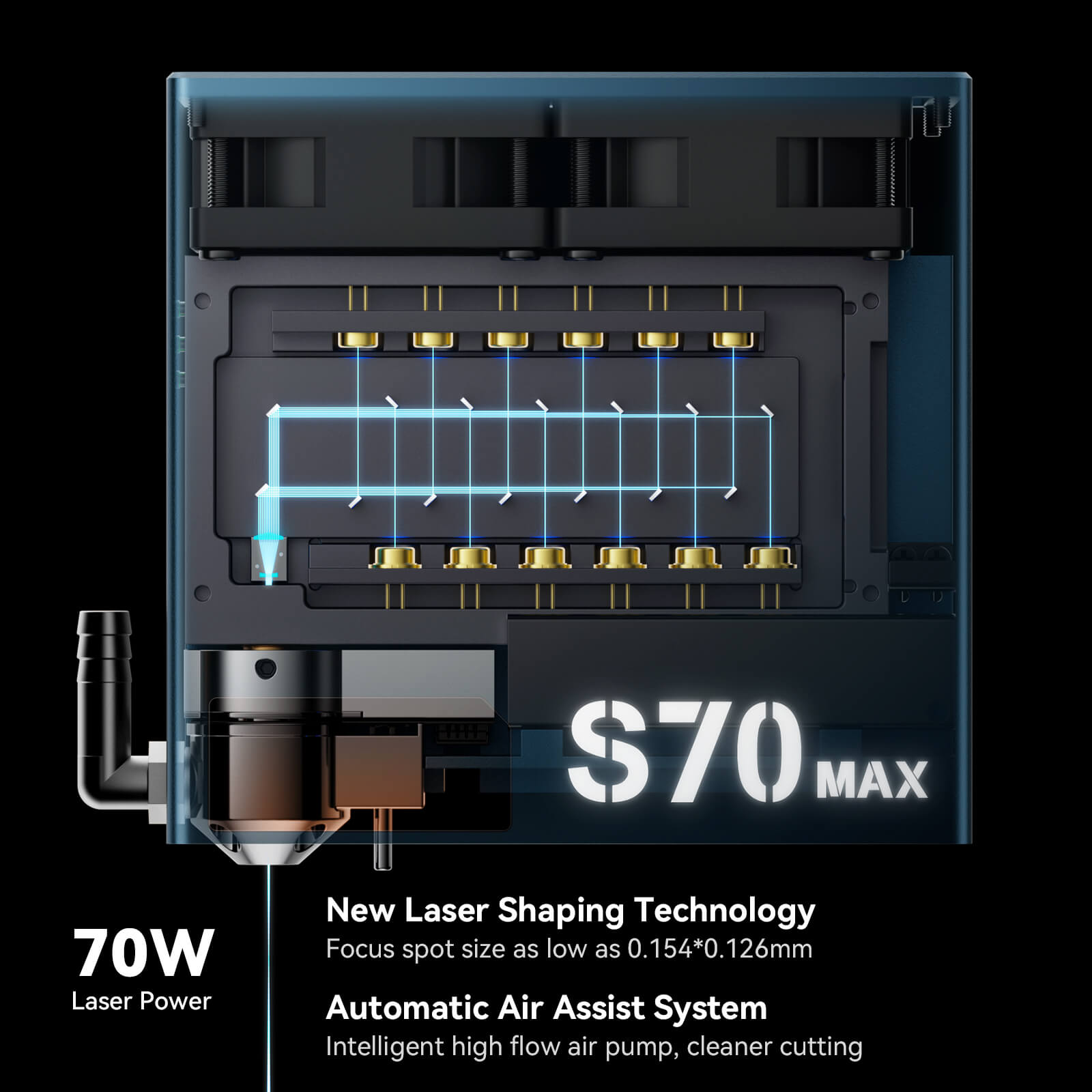

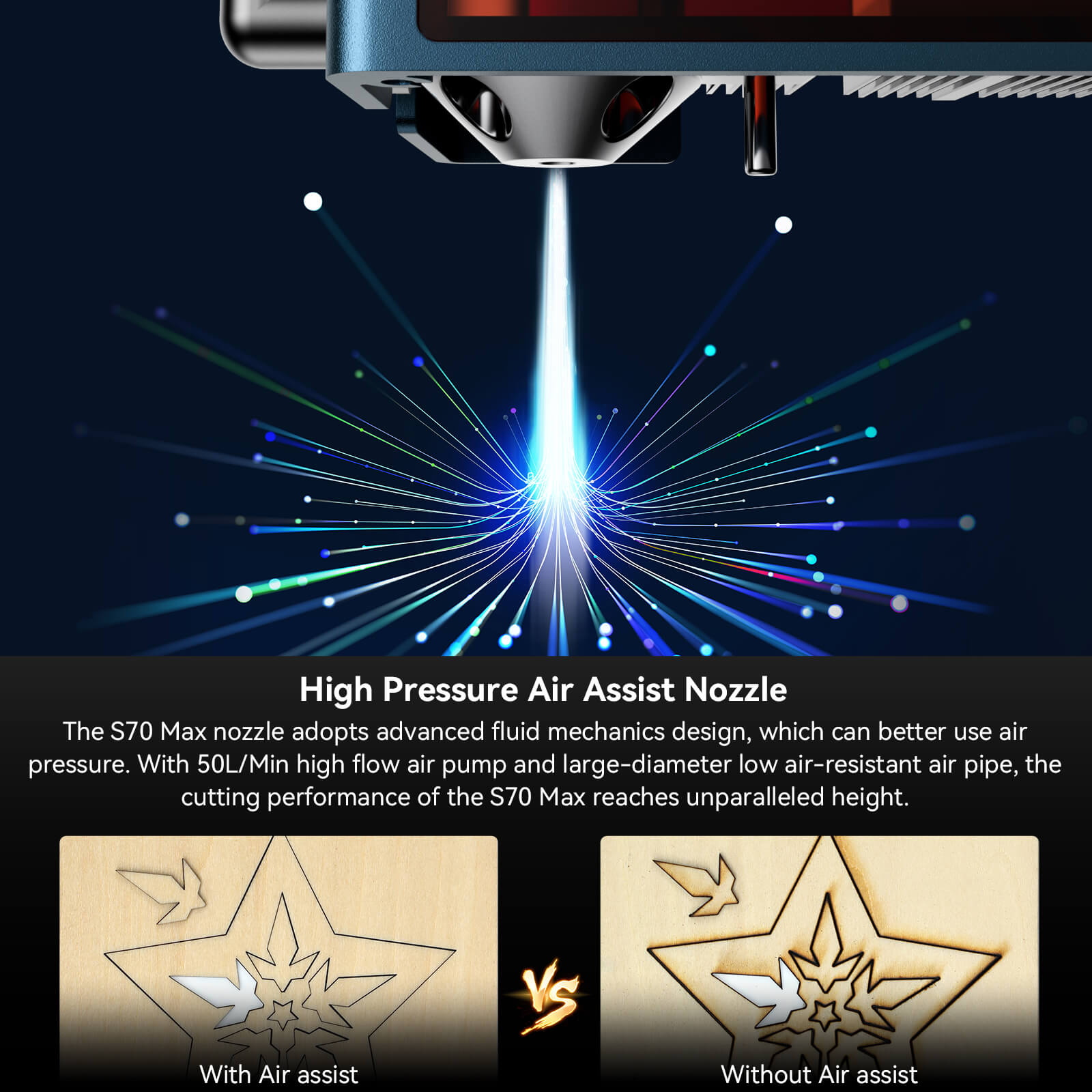

The S70 Max is a professional laser cutter with twelve 6W semiconductor lasers, which together achieve a maximum chip power of up to 72W. In combination with the included 50L high-performance air pump at 100% power, it can, for example, cut 20mm plywood, 30mm paulownia wood, and 10mm black acrylic in a single pass.

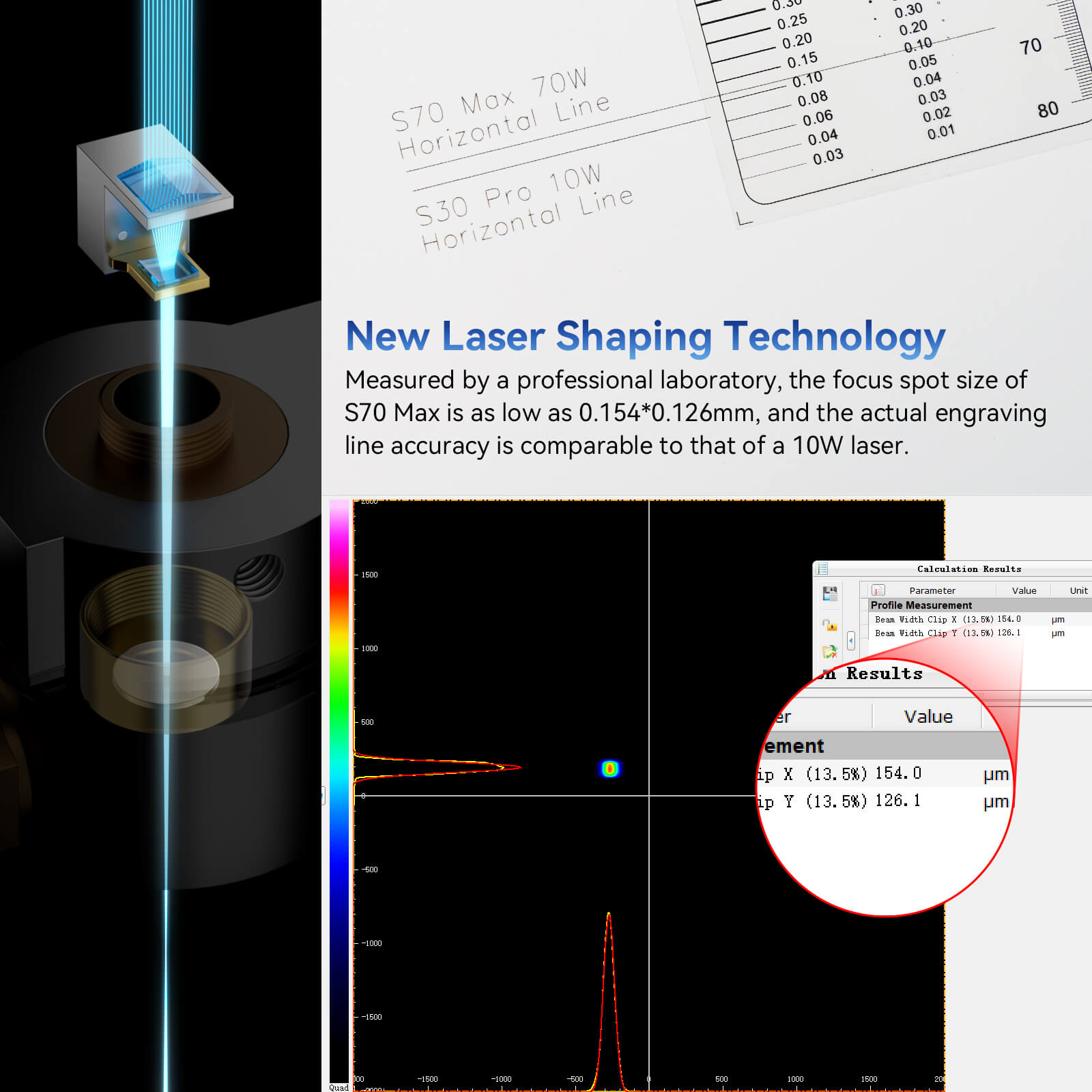

3. Strong cutting performance

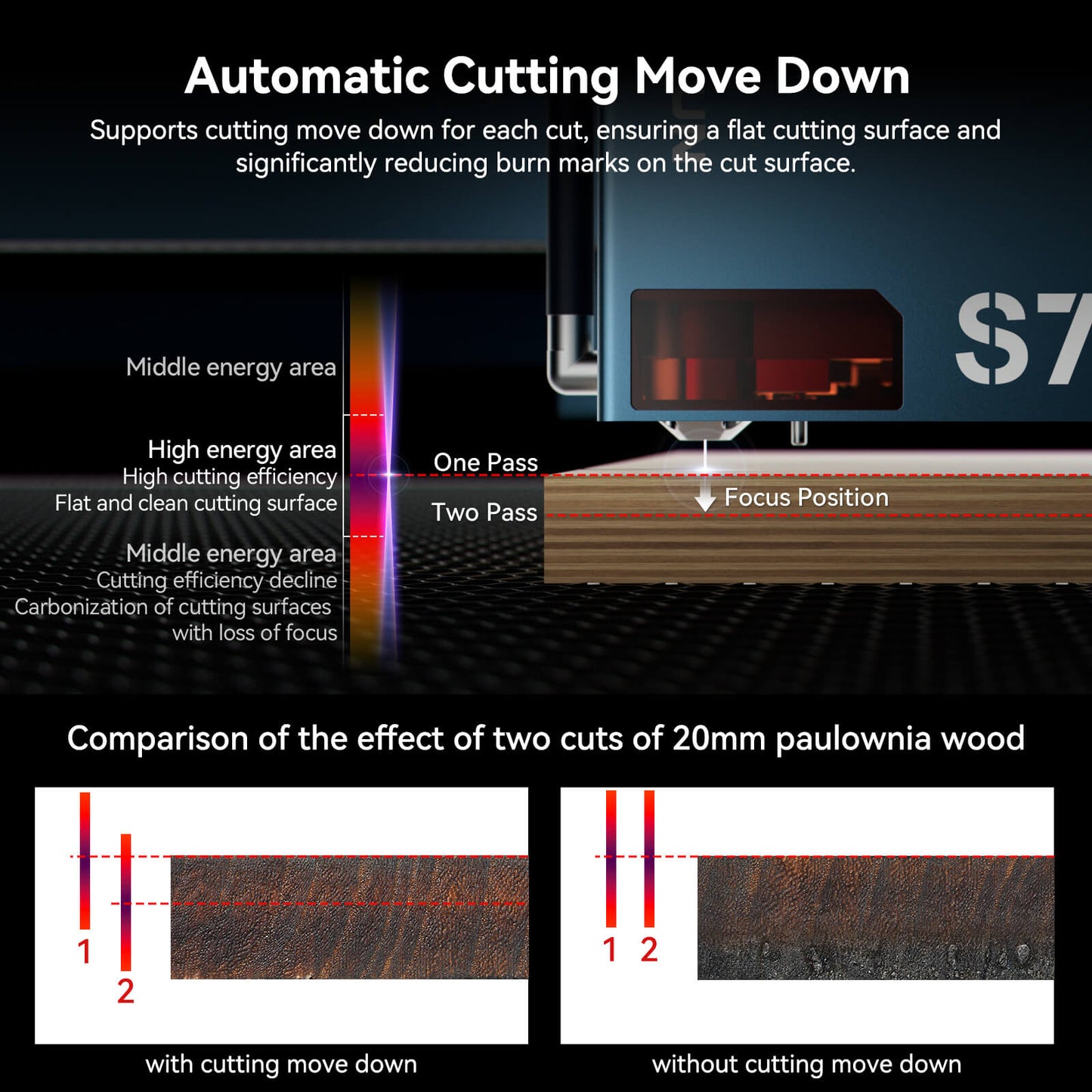

Thanks to state-of-the-art fiber optic spot compression technology, the laser produces an extremely fine spot measuring 0.15 × 0.12 mm. Z-axis offset is supported in the LightBurn software, along with a lowering function for each cut, to ensure a uniform cut surface and significantly reduced burn marks.

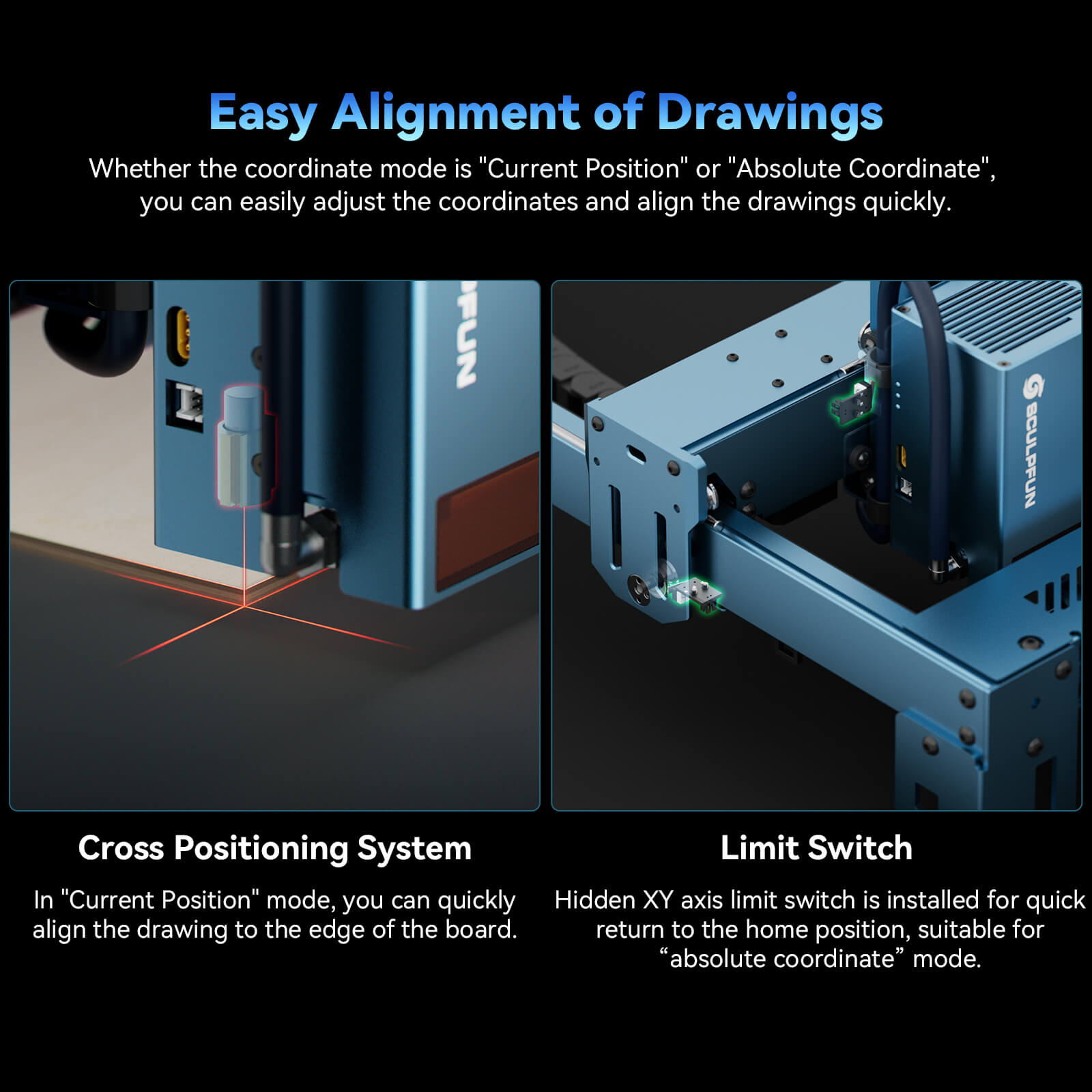

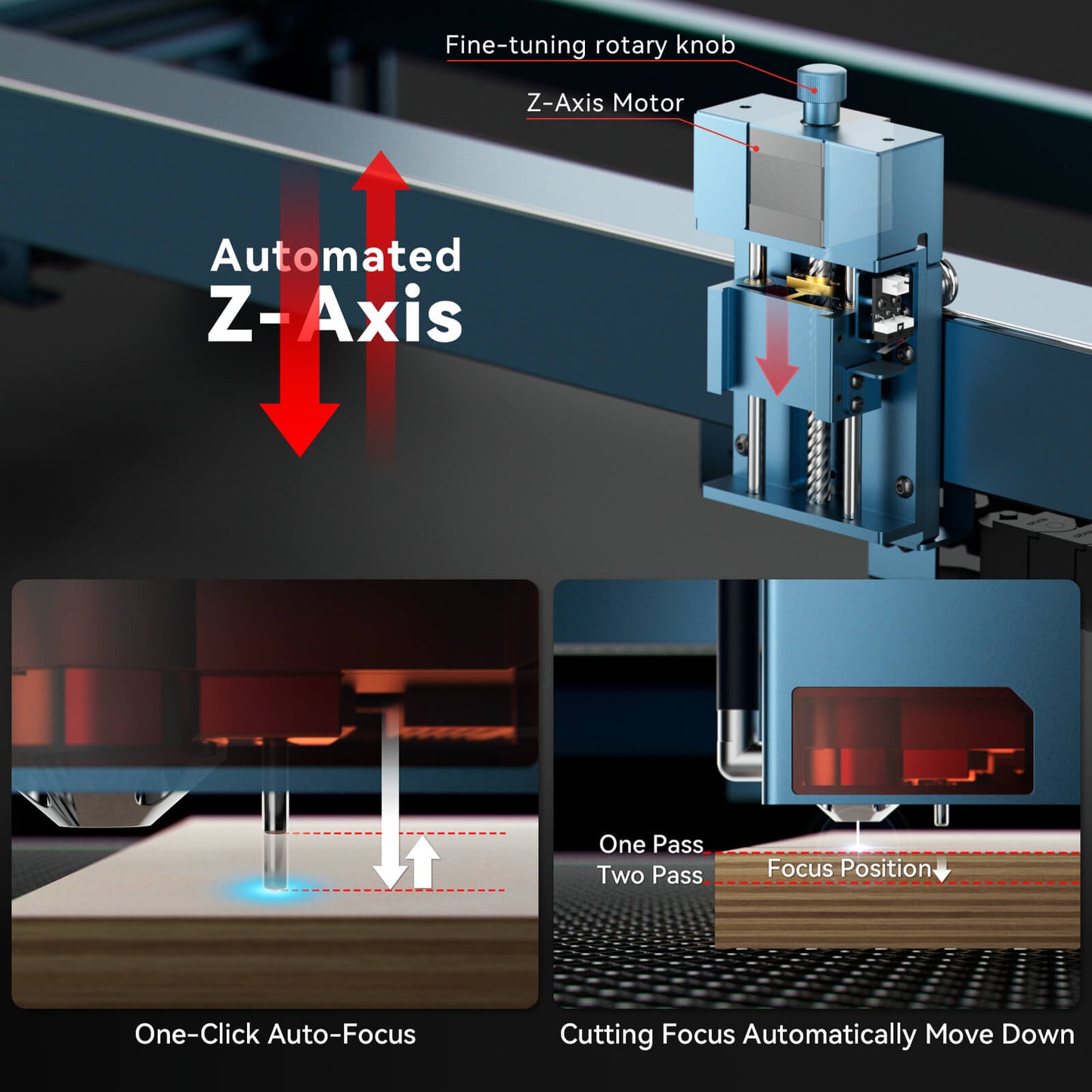

4. Autofocus function

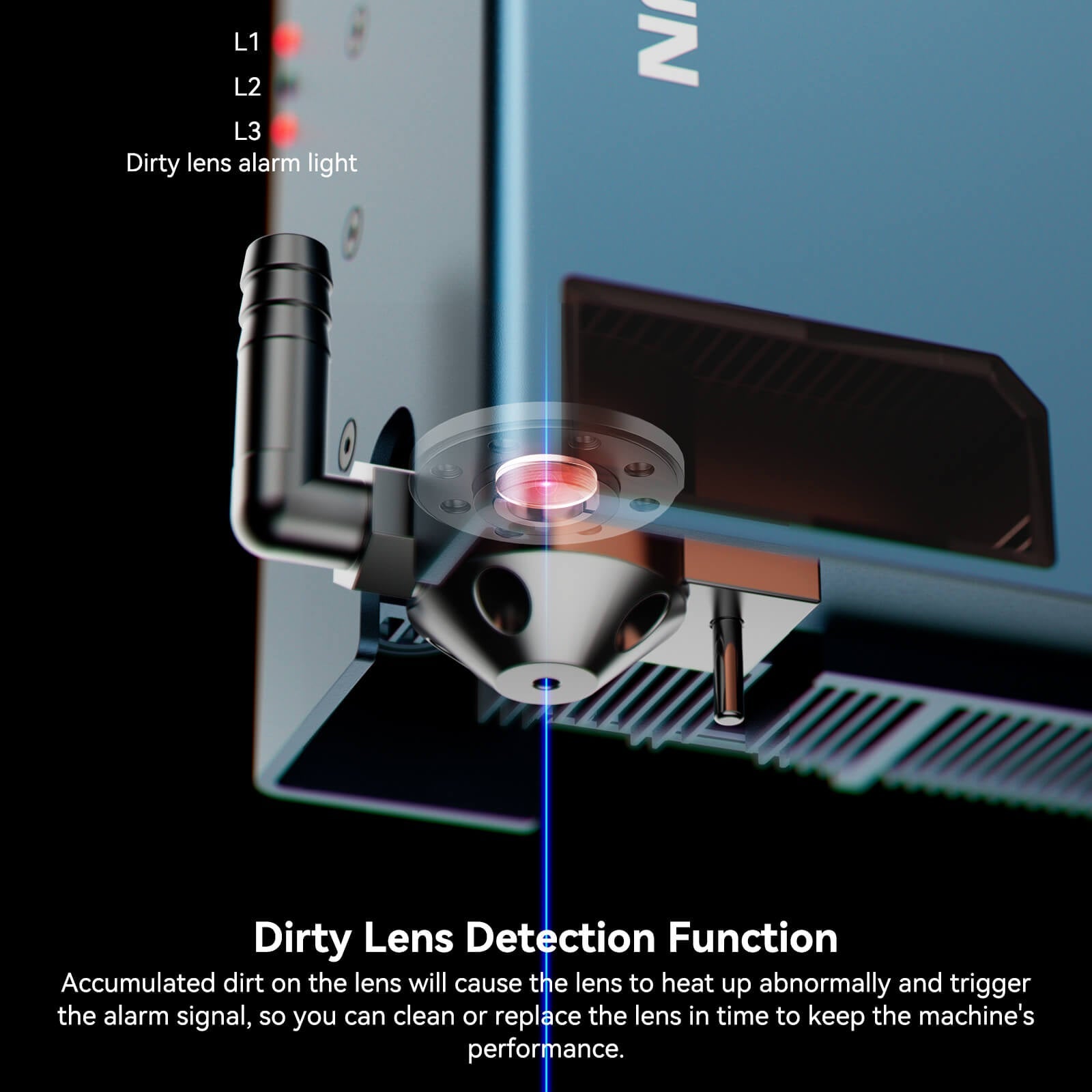

The S70 Max is equipped with an autofocus button that automatically starts and stops the focusing process. Together with the integrated cross-positioning system, this significantly increases setup efficiency. In addition, the laser detects dirty lenses and provides timely notification for replacement to maintain performance.

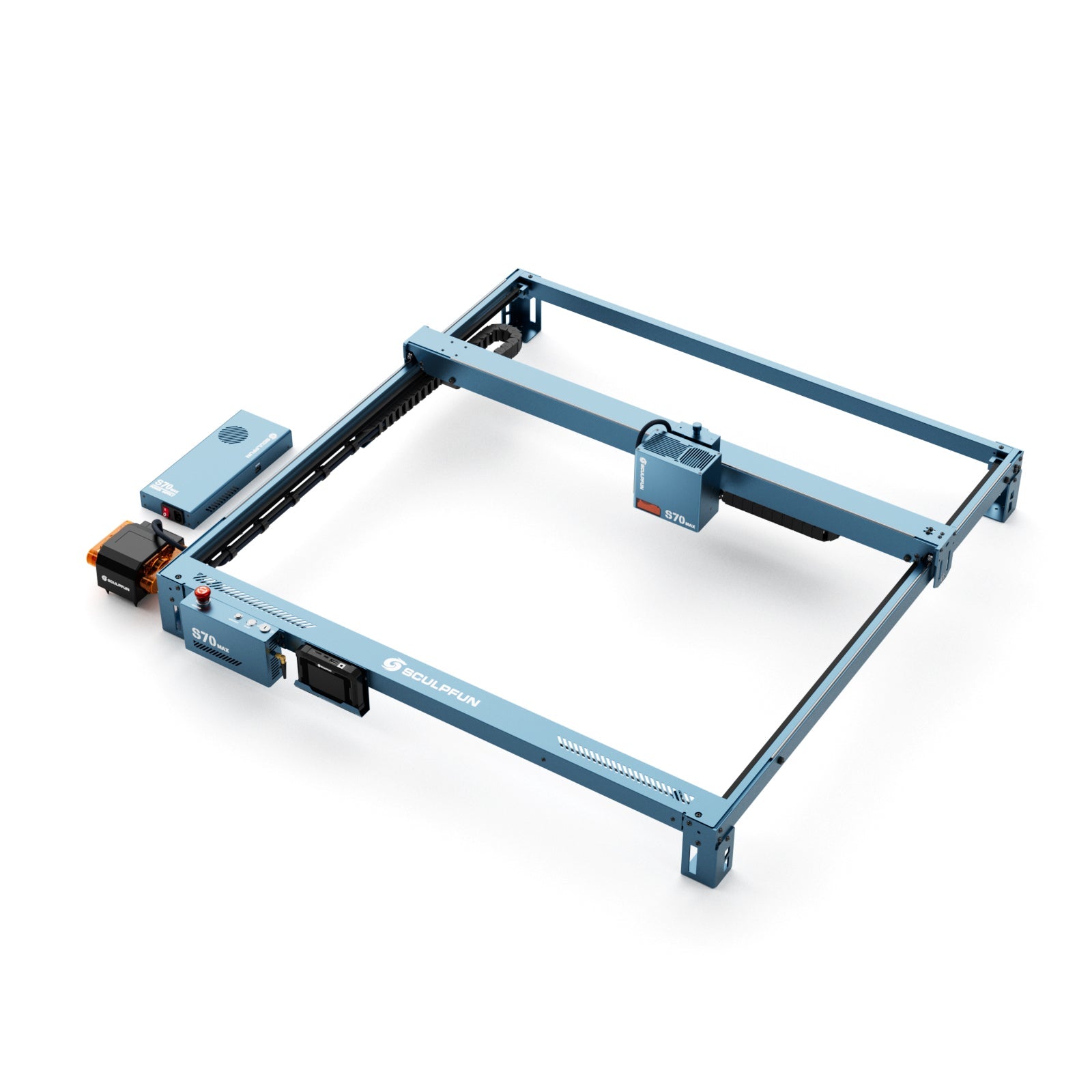

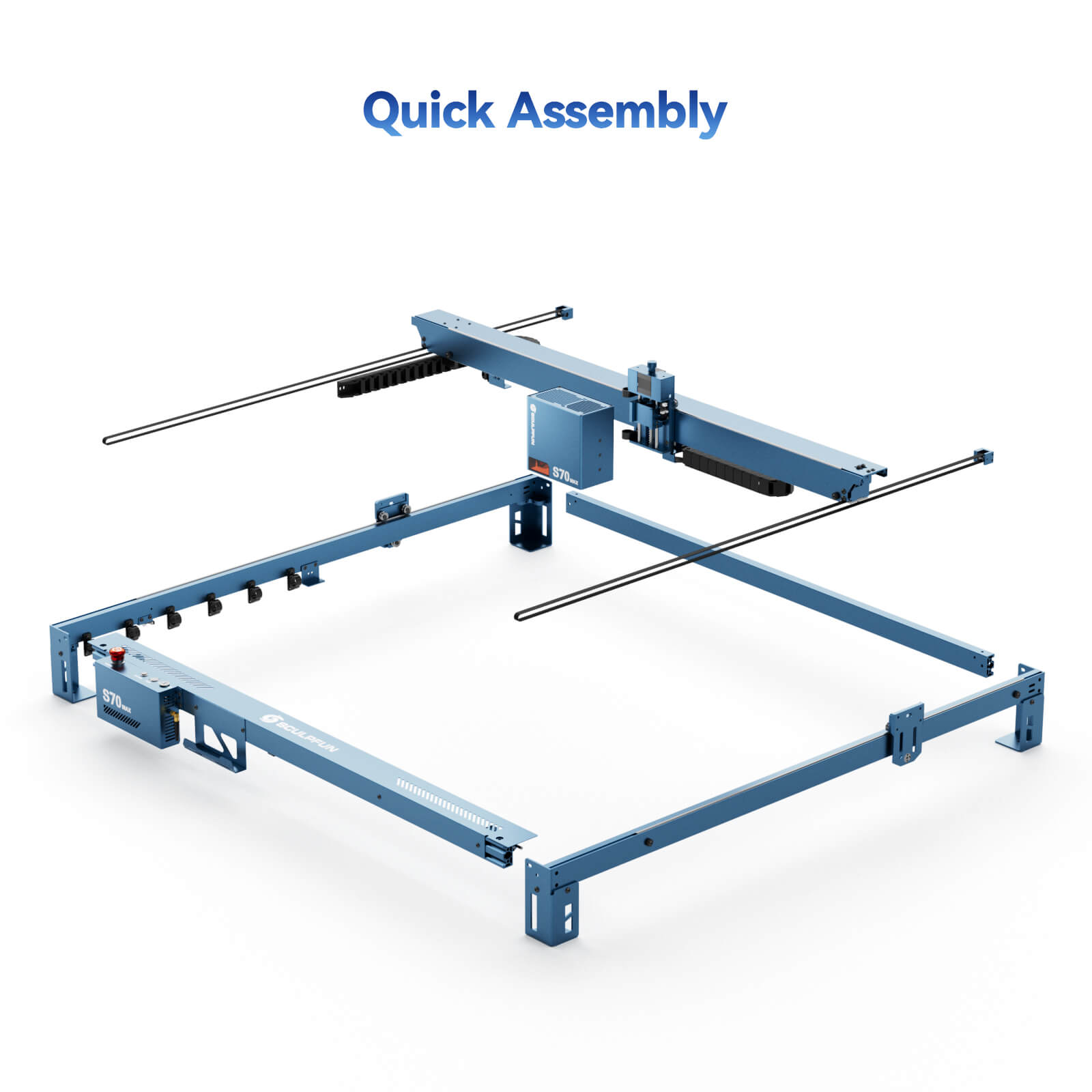

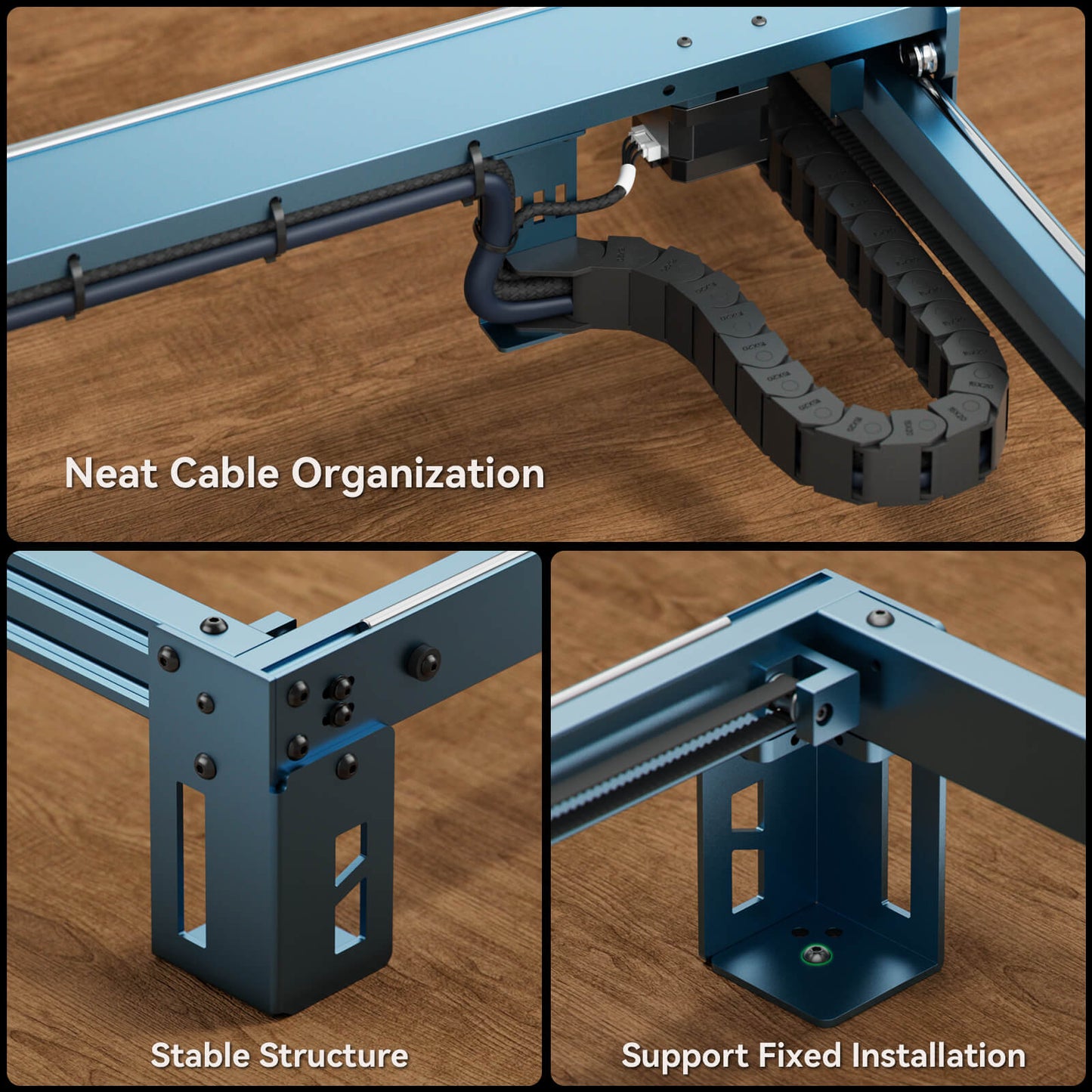

5. Stable construction

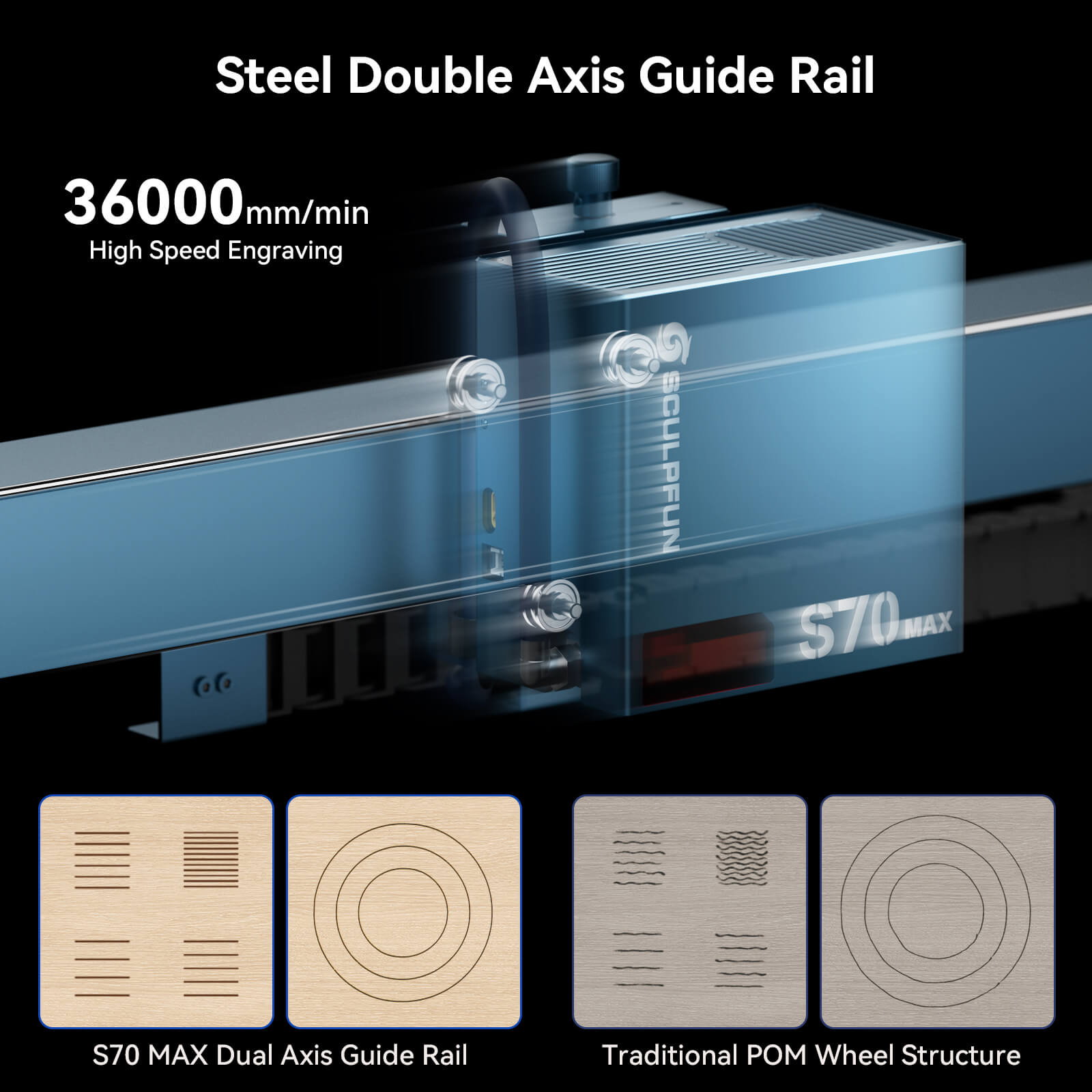

The machine stands on four feet with mounting holes and uses a new three-axis triple-roller system. This ensures smooth, fast operation with low noise levels – even under intensive use.

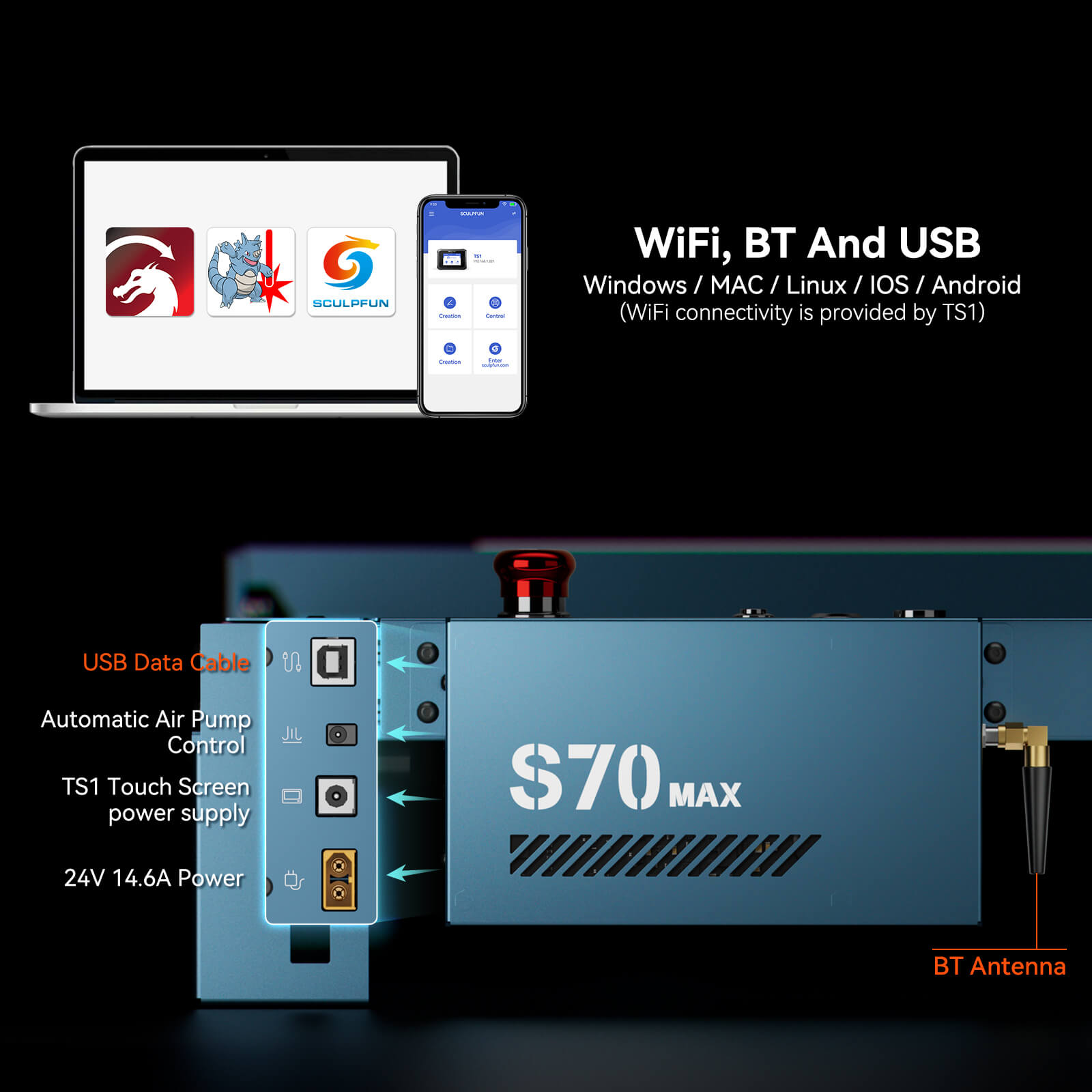

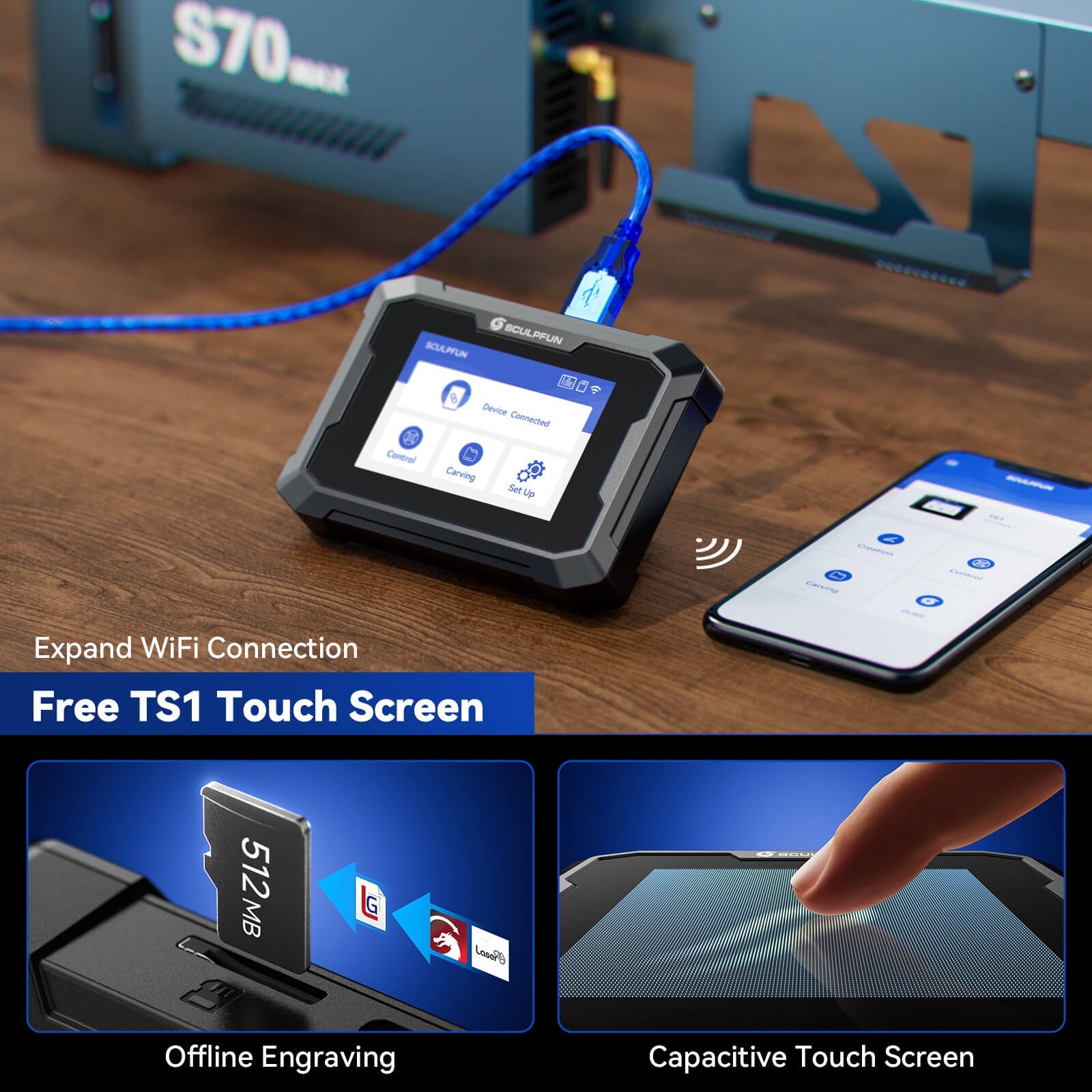

6. Offline operation
The S70 Max features a TS1 touchscreen for offline operation. After pre-importing the files, no computer is required. The machine can also be connected to the Sculpfun app via the TS1's integrated Wi-Fi, allowing preparation to be done directly on a smartphone.

7. Safety features

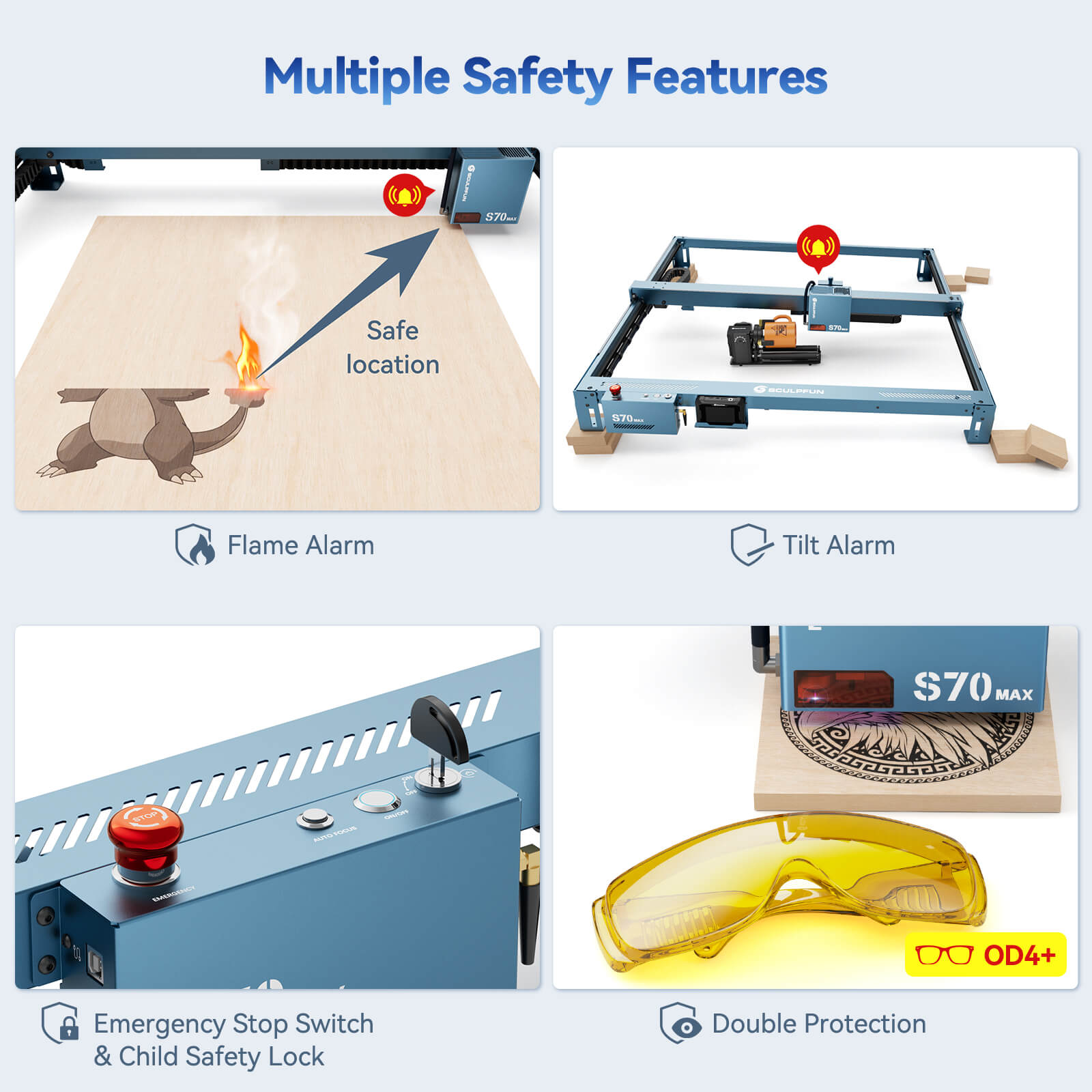

Several integrated sensors offer comprehensive protection: tilt detection, flame sensor, emergency stop switch, safety interlock and OD4+ certified safety goggles are standard features and ensure maximum user safety.

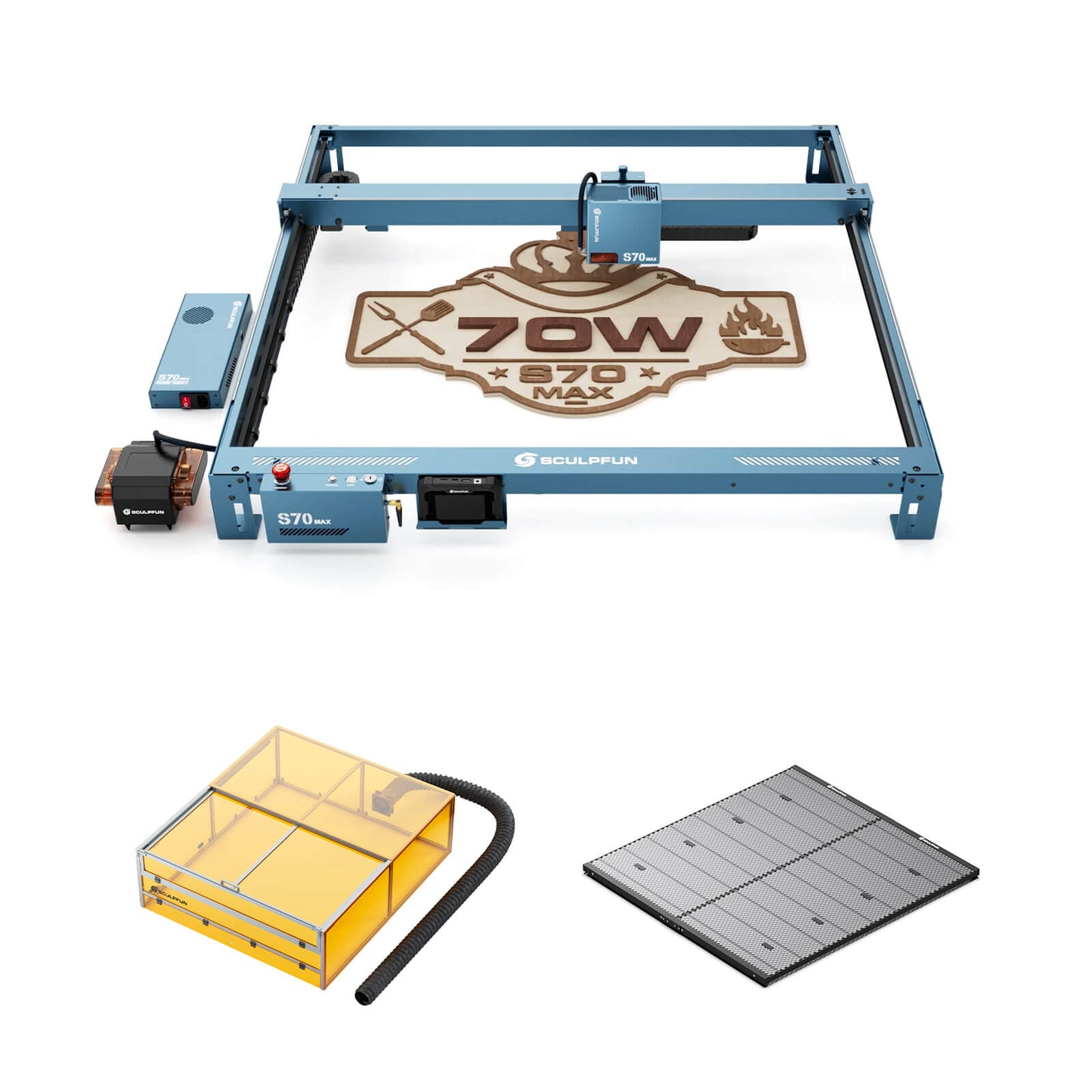

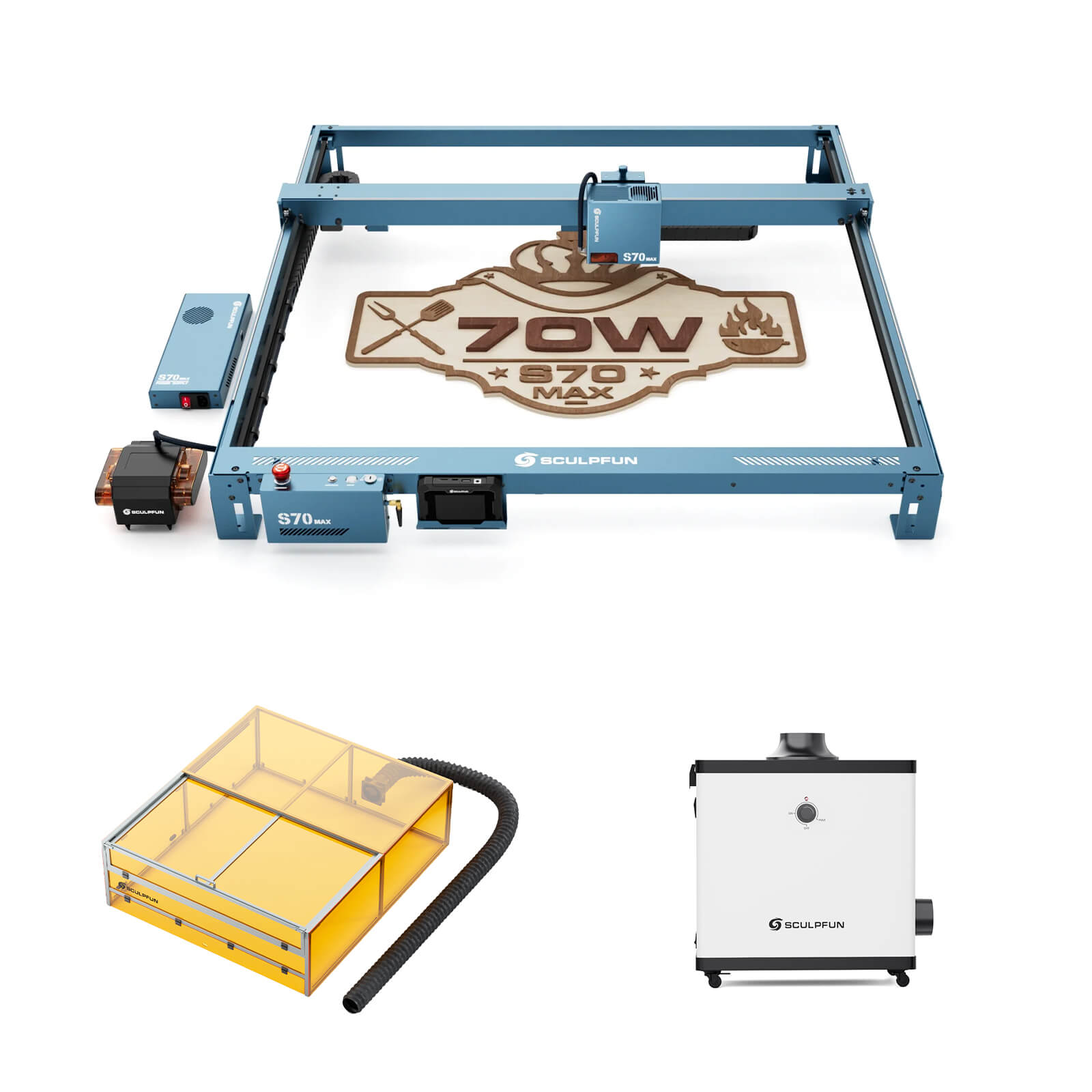

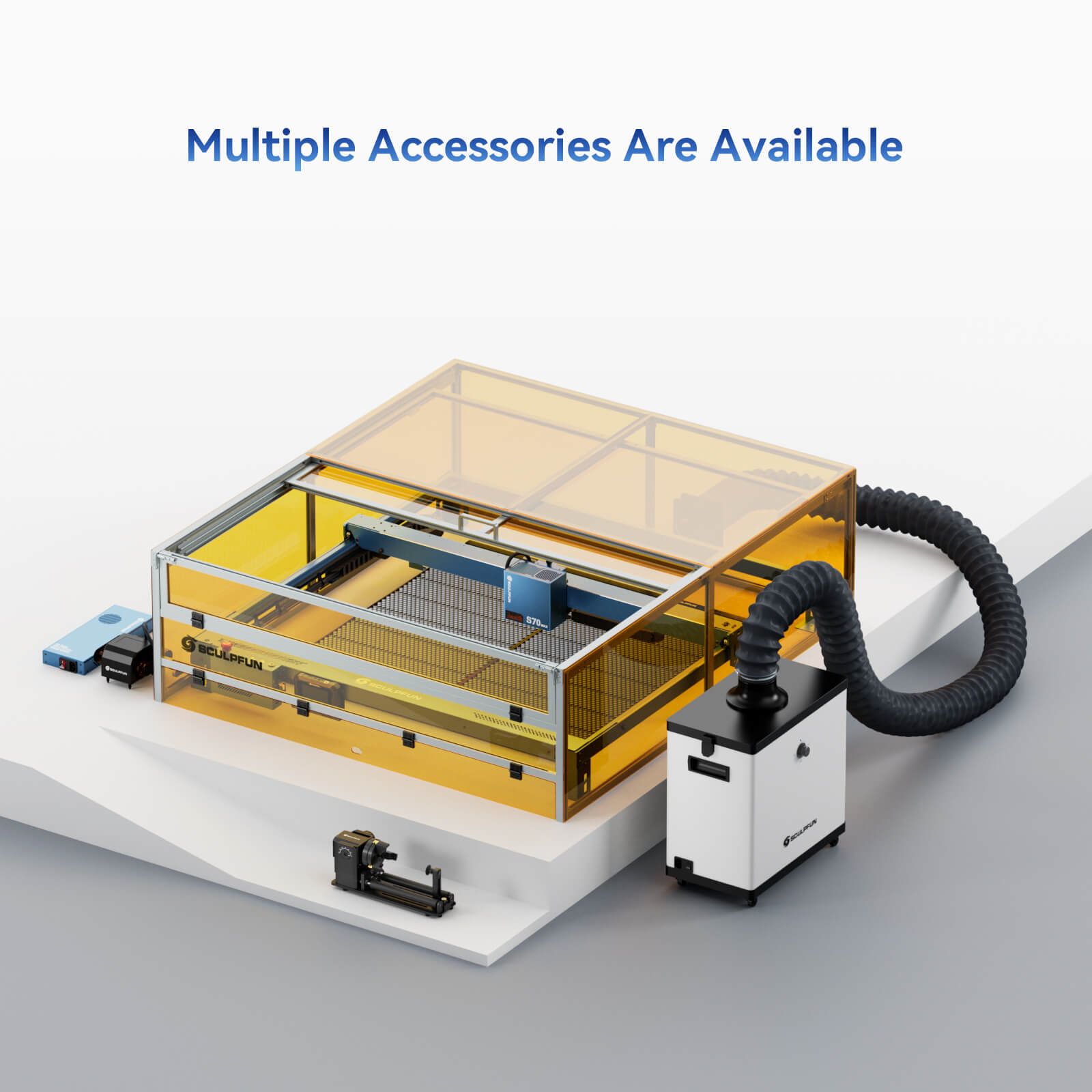

8. Compatibility with accessories

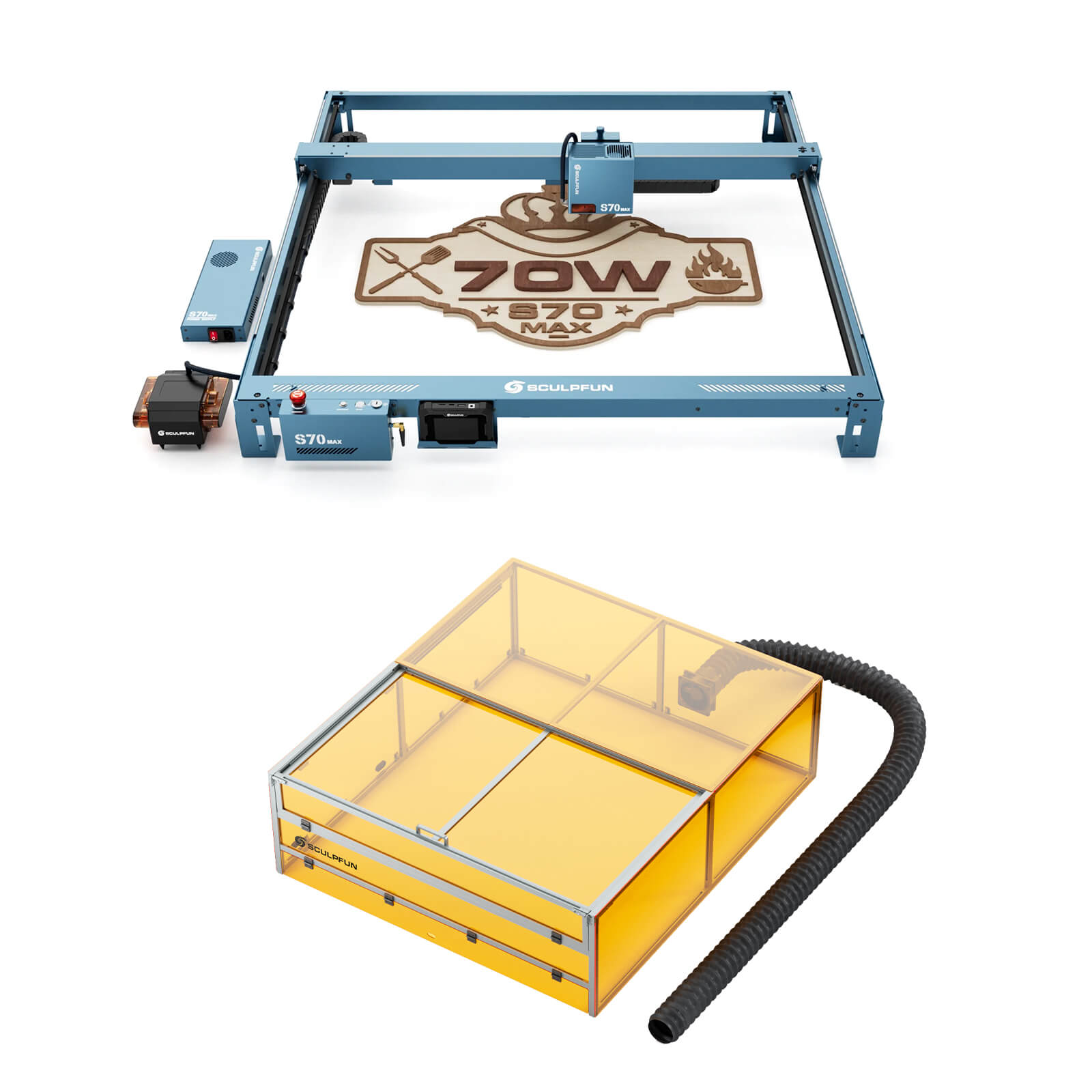

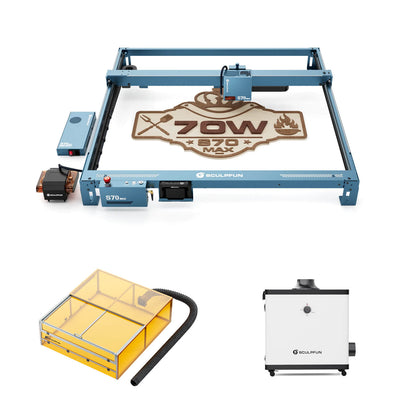

Extensive accessories are available for the S70 Max. Optionally, for example, the large 800 × 800 mm honeycomb base plate, the B70 housing, or the SP1 smoke filter can be added to increase user comfort.

Note: Accessories must be purchased separately. The IR-2 laser head is not directly compatible with the S70 Max.

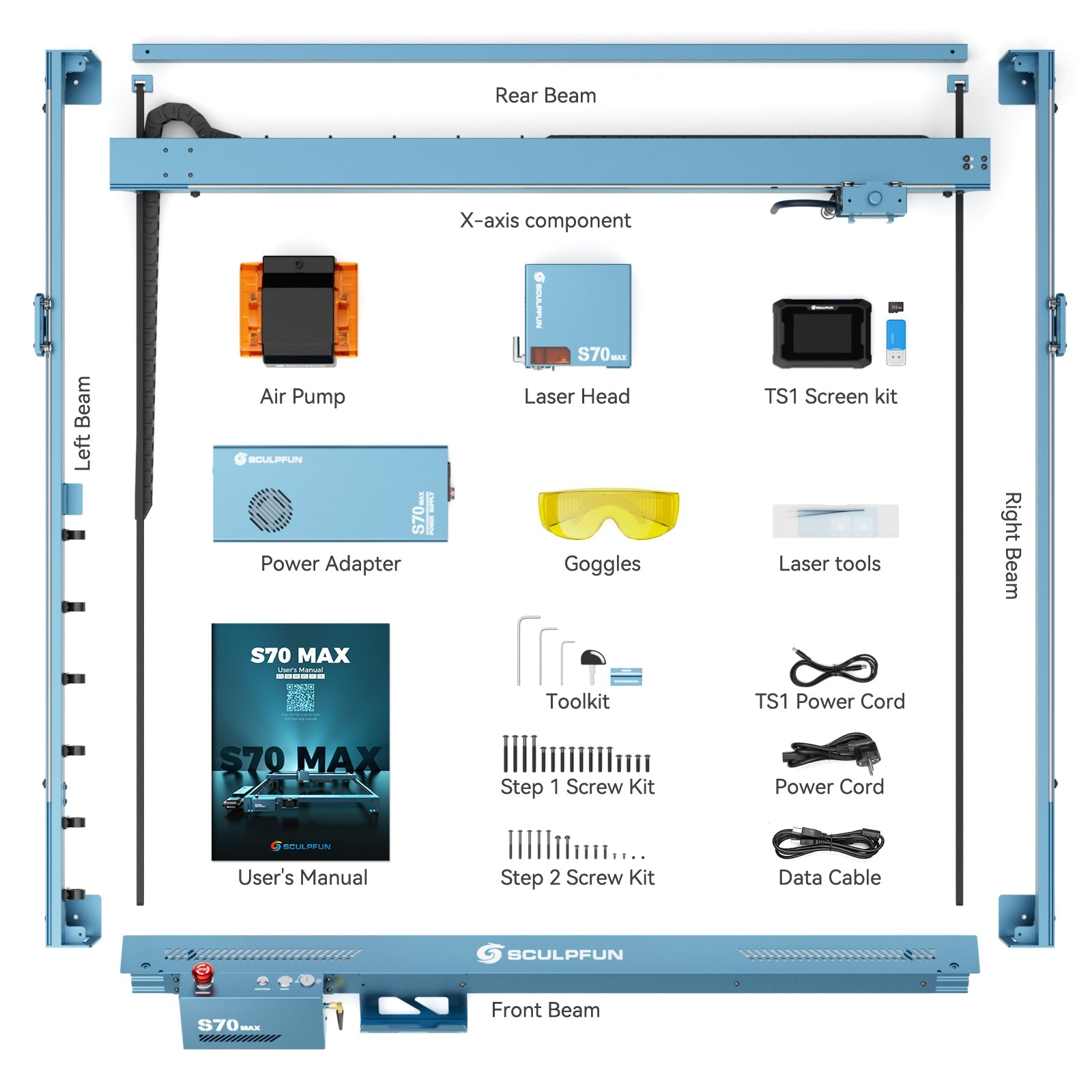

Scope of delivery:

1× Sculpfun S70 MAX frame set (5 pieces), 1× 70 W laser head, 1× laser accessory box, 1× TS1 touchscreen, 1× AC adapter, 1× power cord, 1× TS1 adapter cable, 1× data cable, 1× air pump, 1× fixed focus column, 1× screw set, 1× tool set, 1× laser safety glasses, 1× user manual
